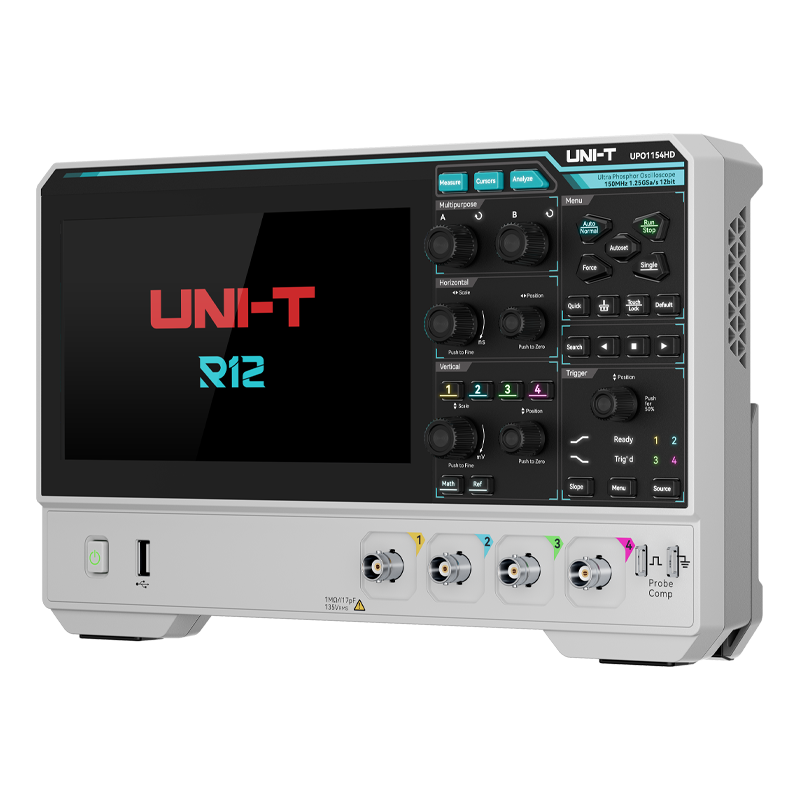

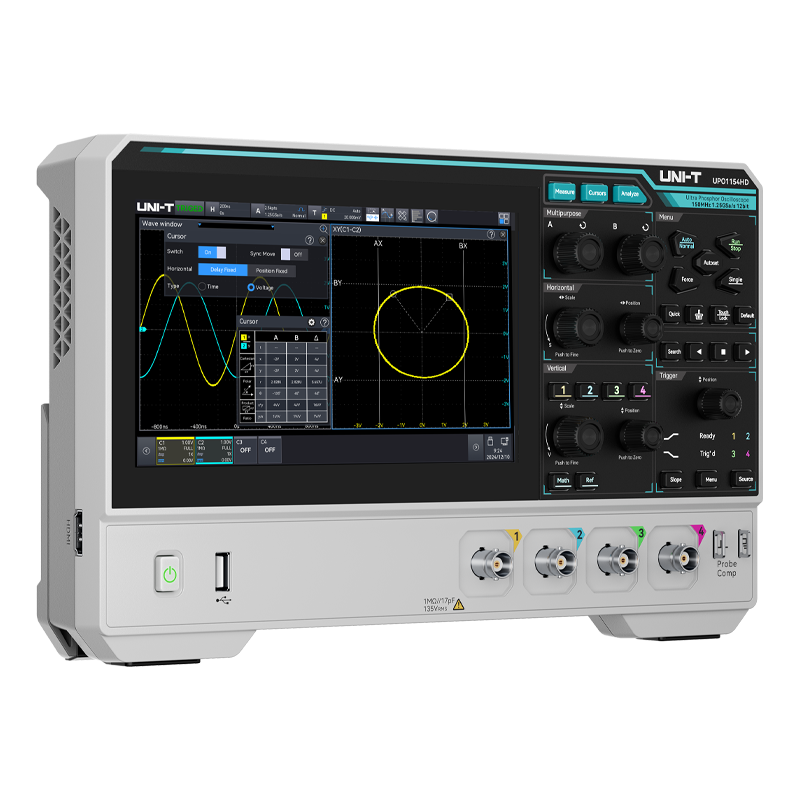

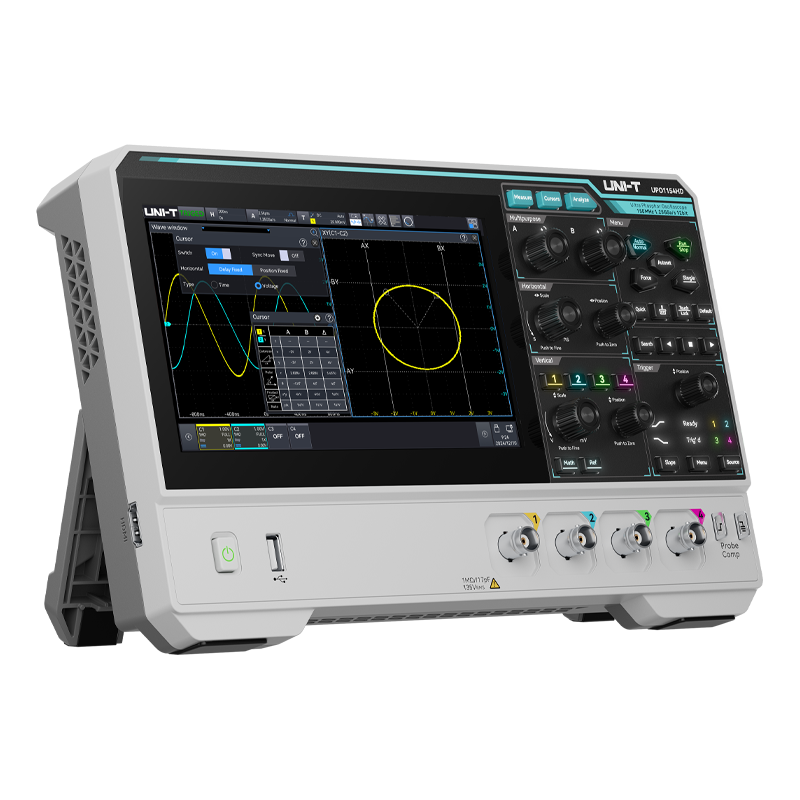

UNI-T UPO1152HD high-resolution oscilloscope

New

Buttons

UPO1154HD (150MHz, 4CH) UPO1152HD (150MHz, 2CH) UPO1084HD (80MHz, 4CH) UPO1082HD (80MHz, 2CH)

Bandwidth: 150 MHz
Analog Channels: 2
Sampling Rate: 1.25 GSa/s
Memory Depth: 100 Mpts
Waveform Capture Rate: 500,000 wfms/s

In stock: 3

€409,00 EUR

Shipping calculated at checkout.

Scroll to section

Characteristics

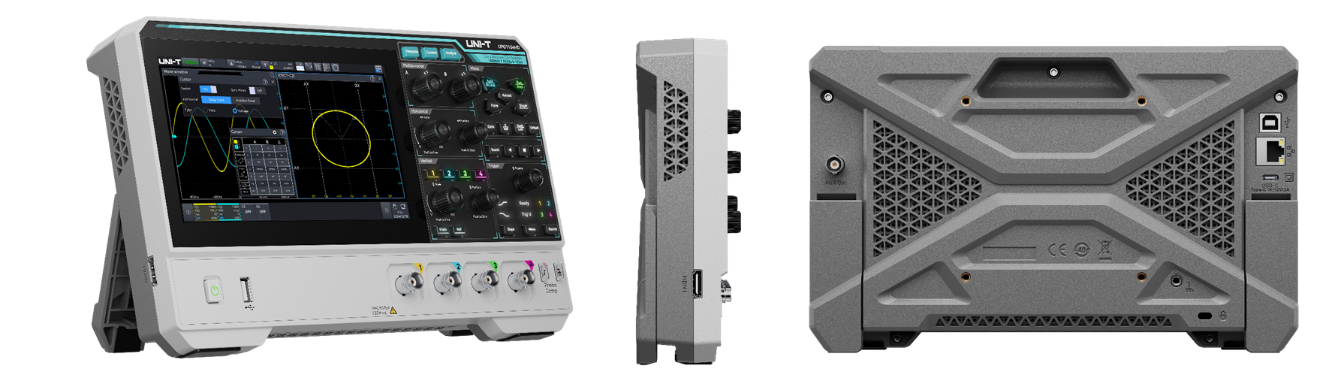

Brand New Appearance Design

Double-sided slim design for a modern and compact factor
Dimensions：28.2cm×17.5cm×4.9cm

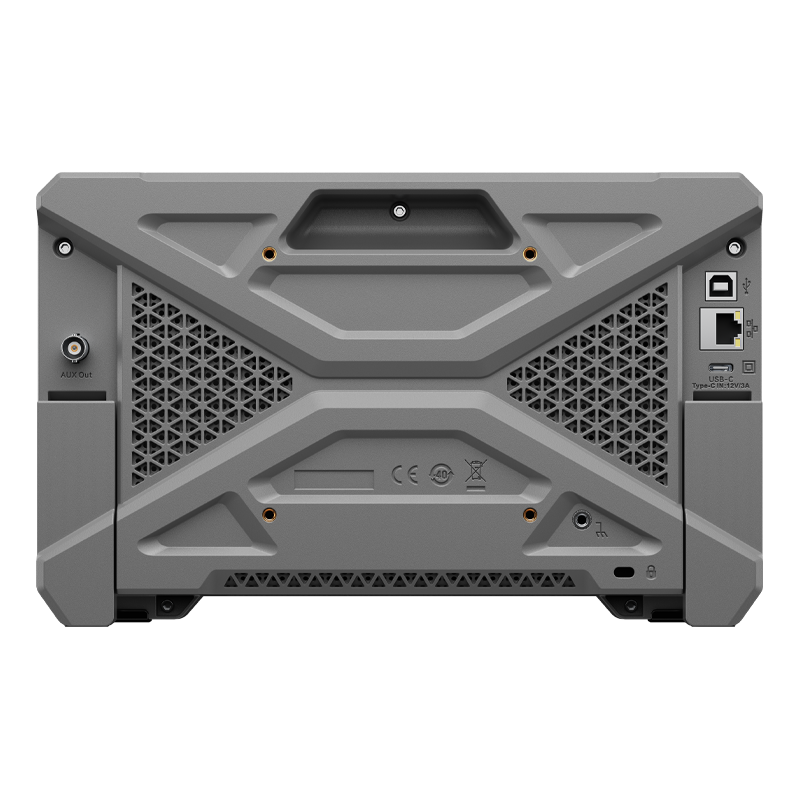

Type-C for Power Supply

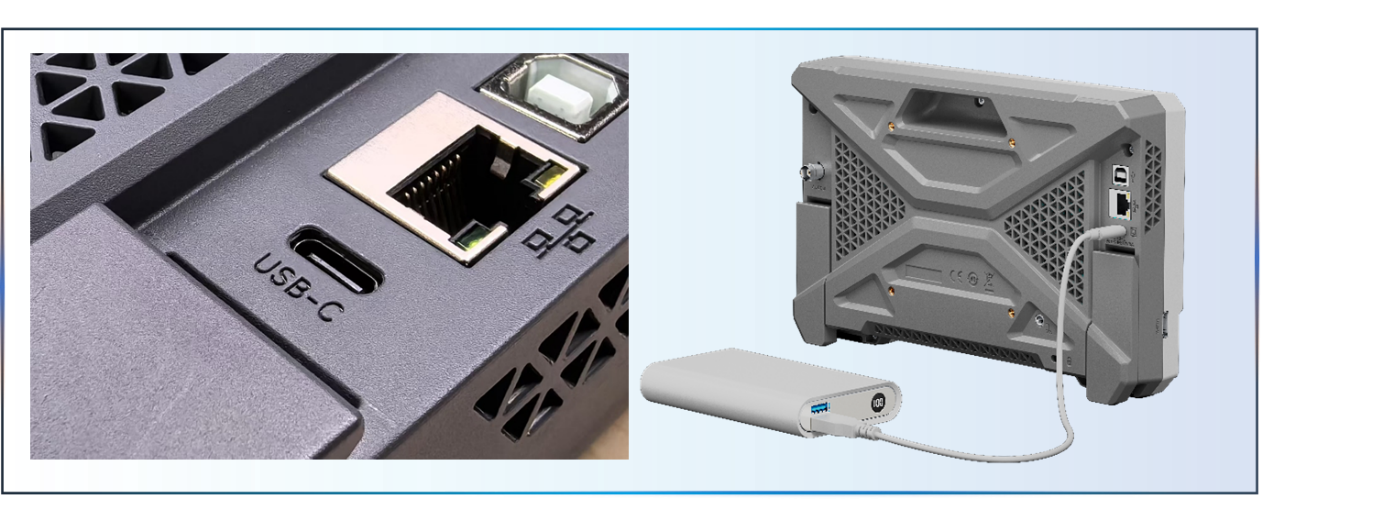

UPO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger

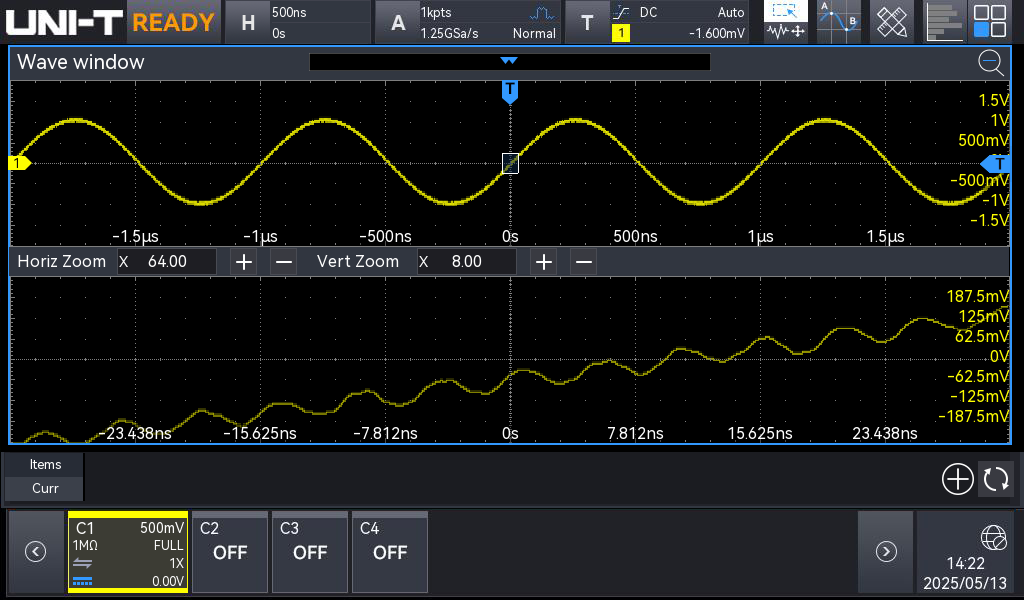

12-Bit High-Resolution ADC

12-bit high-resolution ADC sampling has a quantization level of up to 4096, which is 16 times that of a traditional 8-bit ADC, allowing for better restoration of waveform details.

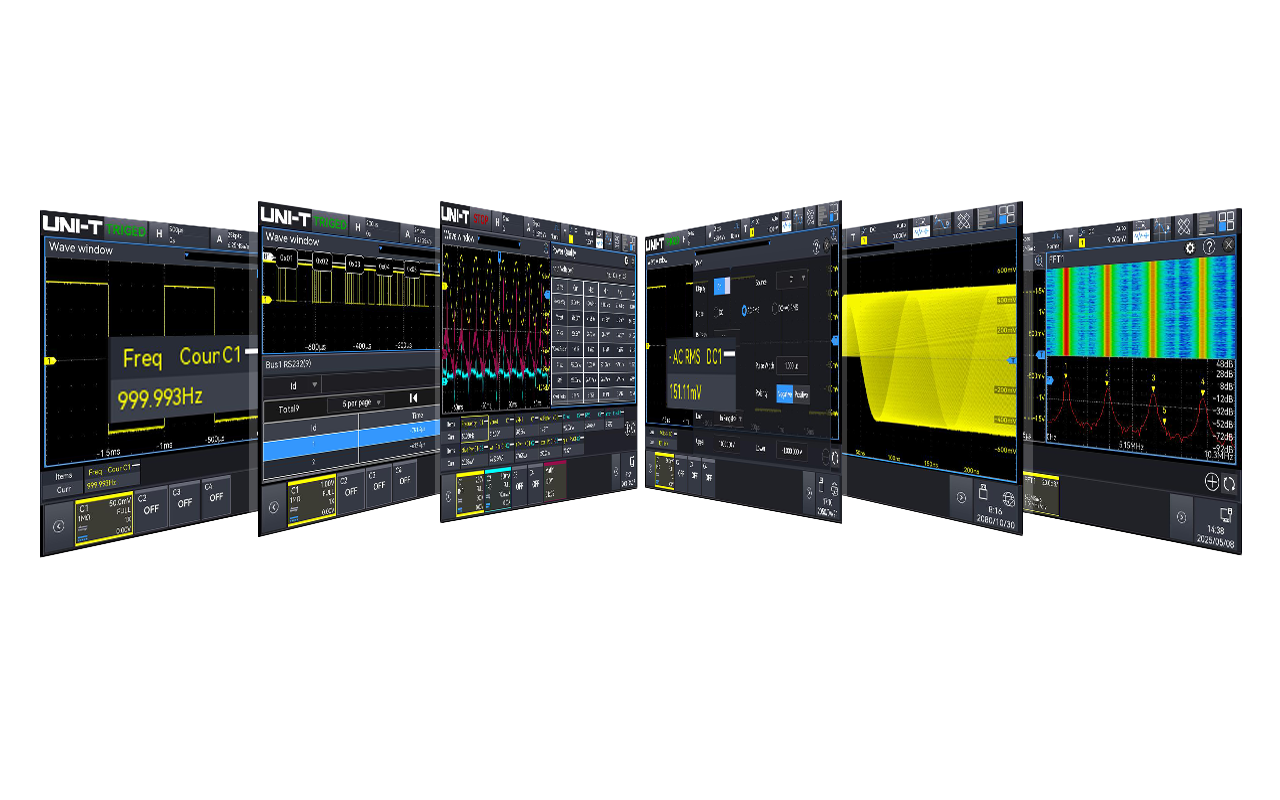

Versatile Testing Equipment

-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

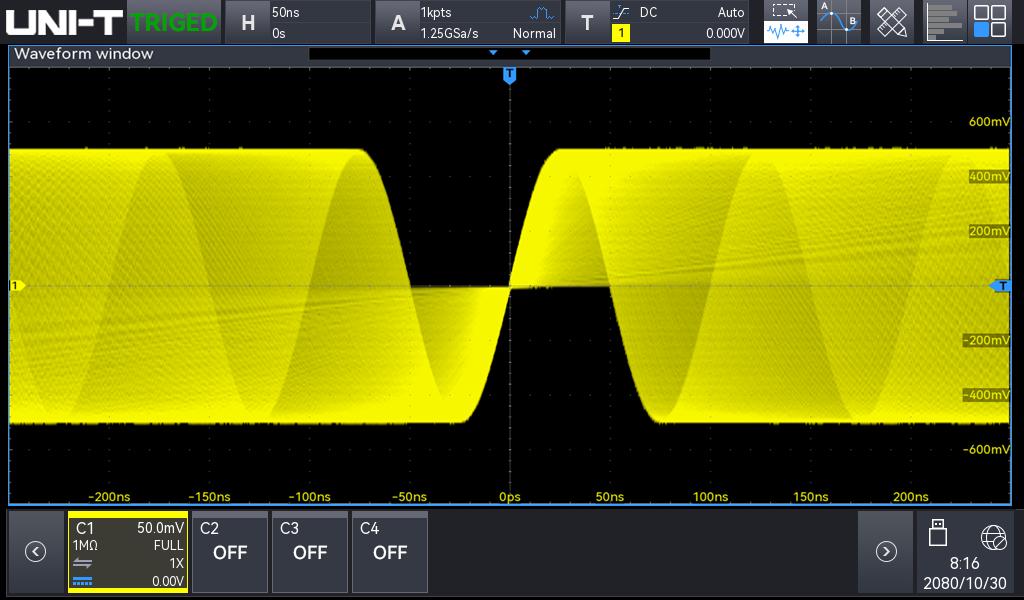

Ultra Phosphor 3.0

Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 100,000 wfms/s, and up to 500,000 wfms/s in the sequence mode.

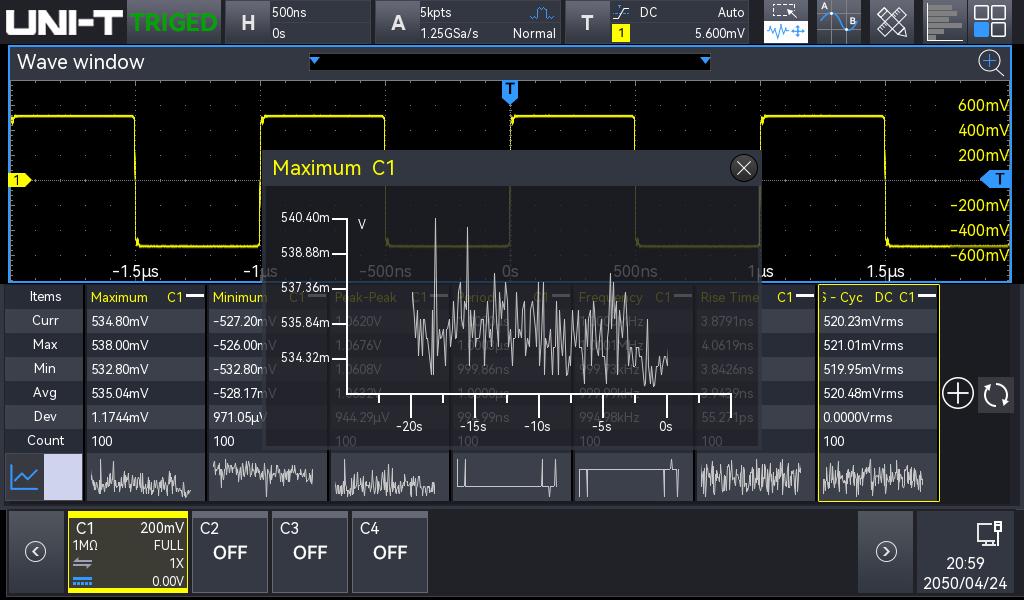

56 Types: Measurement, Statistics, Trend Graphs

56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

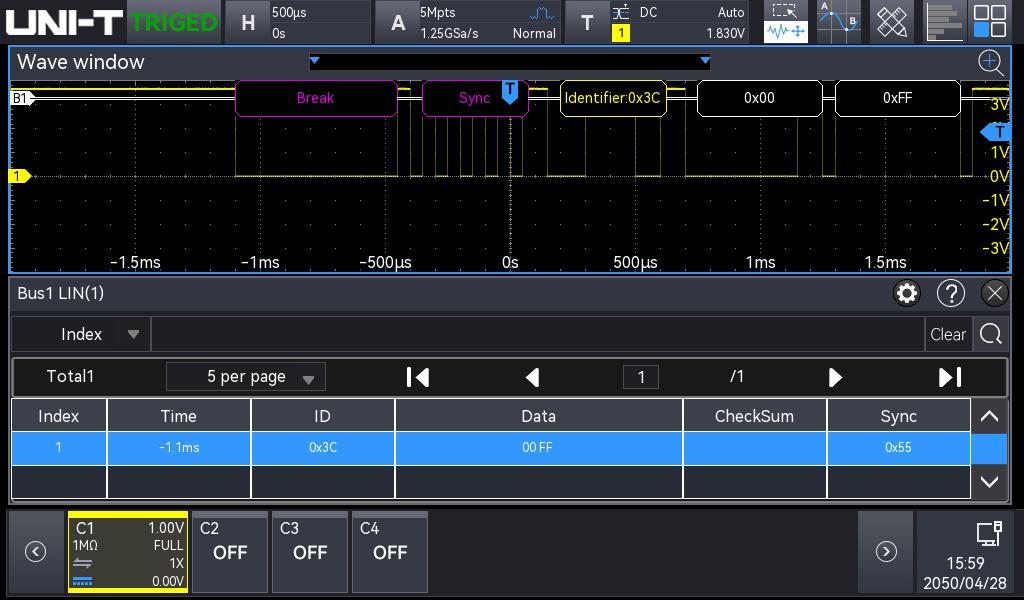

Protocol decoding and triggering

Supports 5 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, LIN

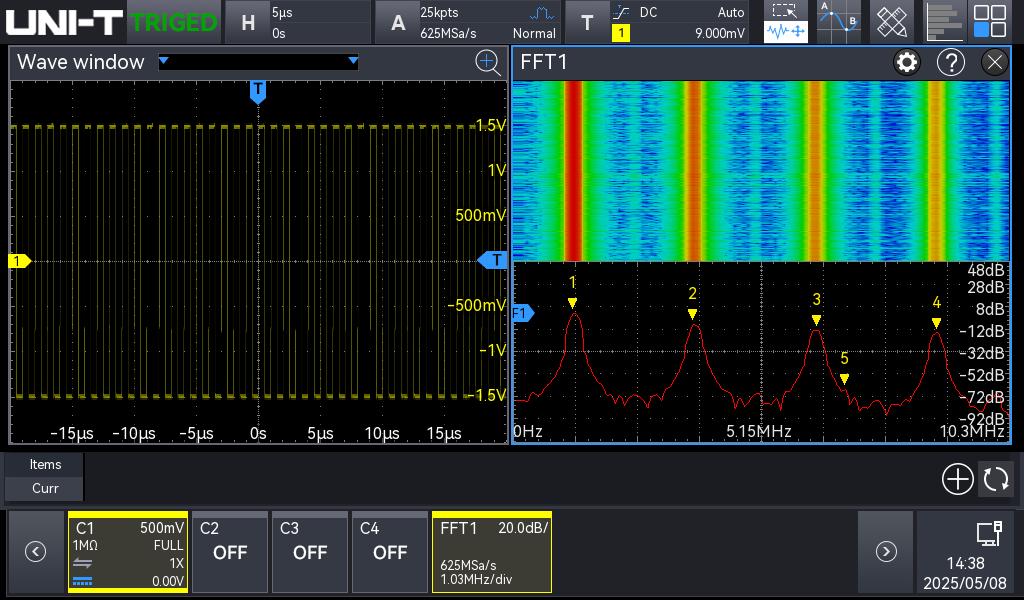

Spectrum Analyzer

-Standard enhanced FFT with up to 1 Mptsfor 4-channel signal analysis-Frequency range: 0 to 625 MHz-Waterfall curve-4 traces and 4 detections-Mark type: Auto, manual, and threshold-Marker point list

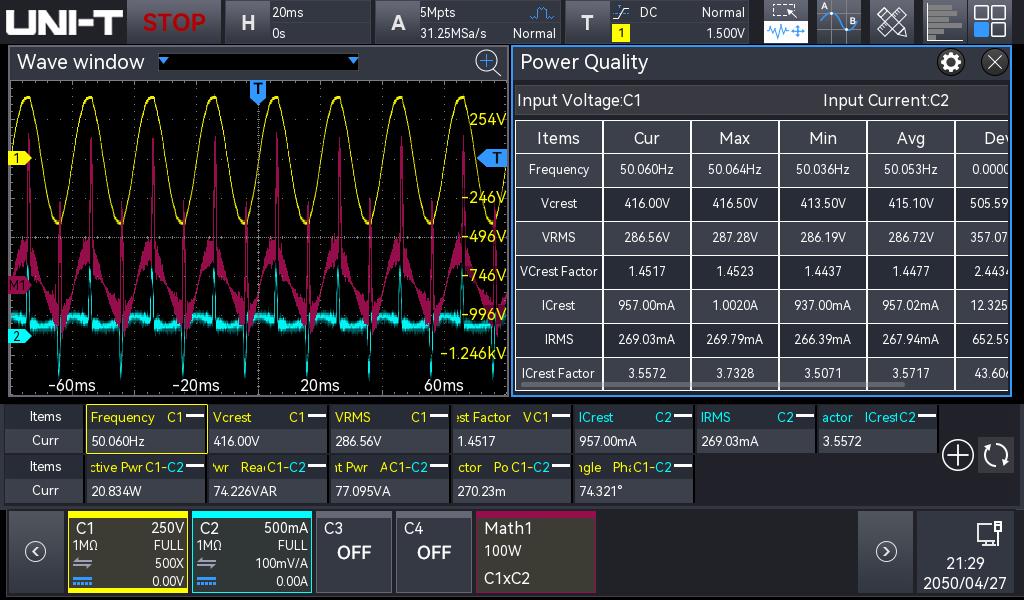

Power Analysis

Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Steady-State On-Resistance
Output Analysis
-Ripple Analysis
-Modulation Analysis
-Power Efficiency
-Transient response
-ON/OFF time

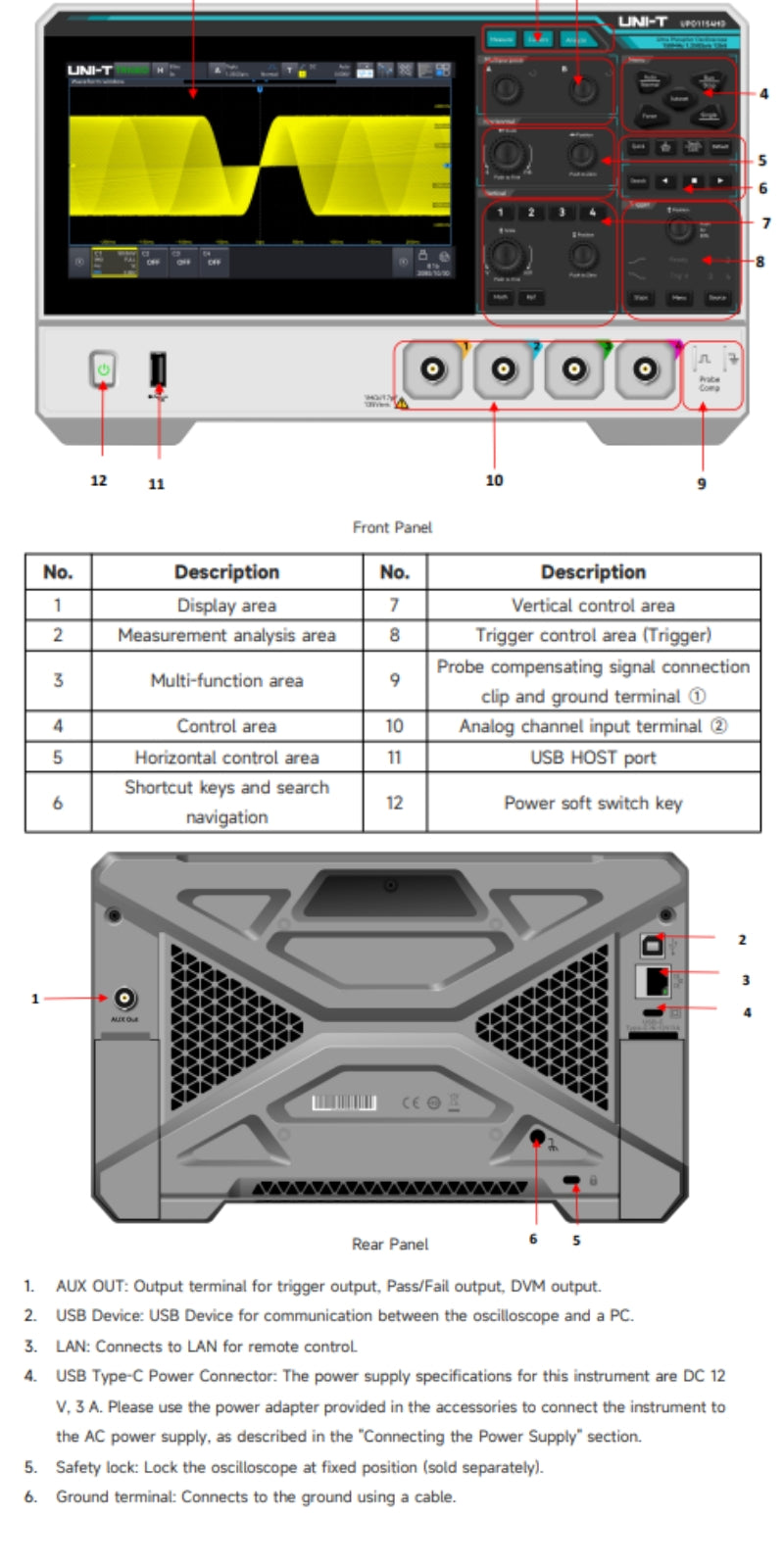

Product Details

Analog Bandwidth: 150 MHz bandwidth ideal for education, embedded development, and general-purpose debugging
Real-Time Sampling Rate: Up to 1.25 GSa/s for accurate capture of high-speed signal transitions
12-bit Vertical Resolution: High-fidelity waveform detail with up to 4096 quantization levels
Channels: 2 analog channels with a maximum memory depth of 100 Mpts per channel
Waveform Capture Rate: Up to 100,000 wfms/s (sequence mode: up to 500,000 wfms/s) for capturing rare and intermittent events
6-in-1 Integrated Instrument:
- Digital Oscilloscope
- Spectrum Analyzer
- Digital Voltmeter (DVM)
- Frequency Meter
- Protocol Analyzer
- Power Analyzer
Measurement Visualization: Supports Bar Chart and Line Graph formats for tracking parameter changes over time
Waveform Recording: Real-time hardware waveform recording of up to 100,000 frames with USB export support
Enhanced FFT: Up to 1M-point FFT with waterfall view, detection settings, frequency markers, and advanced spectral tools
56 Automatic Measurement Parameters: Covers comprehensive signal characterization with graphical display options
Multi-Window Display: View waveform, FFT, decoding, and measurements simultaneously
Hardware Frequency Counter: Multi-channel 6-digit frequency meter with adjustable refresh rate and measurement precision
DVM RMS Measurements: Supports DC, AC RMS, and DC+AC RMS
Trigger Types: Edge, pulse width, video, ramp, runt, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, and code pattern
Protocol Triggering & Decoding: RS232/UART, I²C, SPI, CAN, and LIN
Zone Trigger: Graphical trigger system for isolating complex or sporadic signal anomalies
Ultra Phosphor 3.0: 256-level grayscale intensity rendering for enhanced waveform visibility
Display: 7-inch 1024×600 HD capacitive multi-touch screen with gesture control (click, slide, zoom, drag)
Interfaces: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), HDMI
SCPI Support: Enables automated control and integration into test systems
Built-In WebServer: Remote access and control from PC or mobile browser with cross-platform support
Online Update: Supports firmware updates for ongoing enhancement
