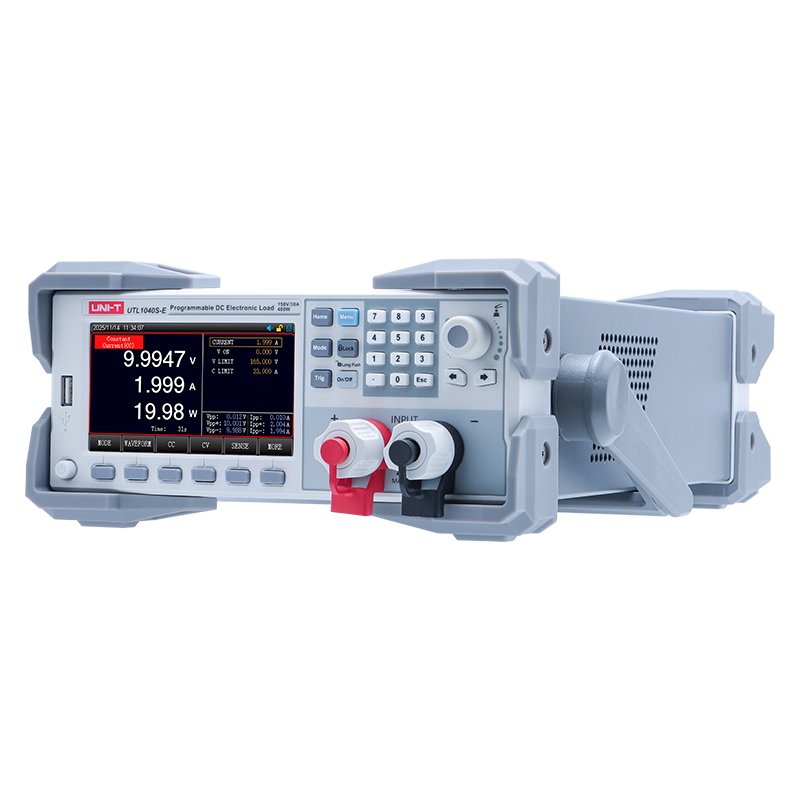

UNI-T UTL1020S DC Electronic Loads
1 4

  • Voltage: 150V
  • Current: 30A
  • Total Power: 200W
  • Resolution: 0.01mV / 0.01mA
  • Max. Dynamic Frequency: 50kHz
  • Current Slew Rate: 0.0006A/μs – 3A/μs
  • Size: ½ 2U
  • Connectivity: RS232

In stock: 1
€559,00 EUR €559,00 EUR €0,00 EUR
Shipping calculated at checkout.
Scroll to section

Characteristics


15 test modes

15 test modes to adapt to more application scenarios

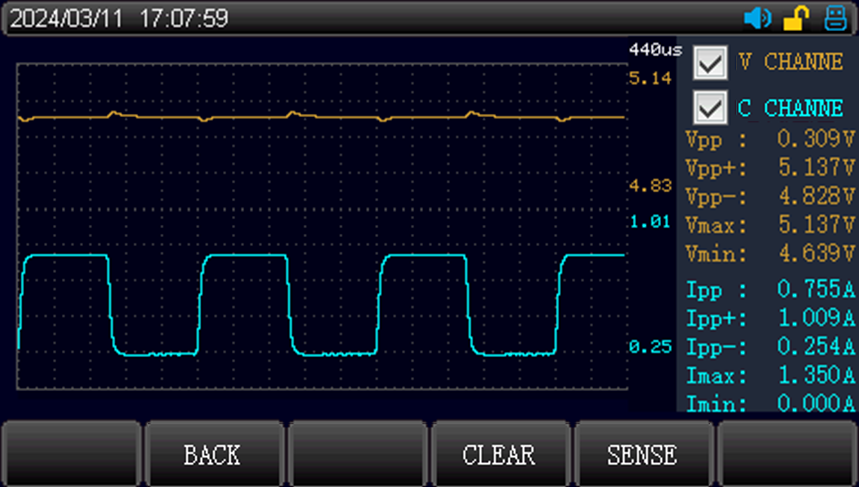

Ripple measurement & waveform display

Ripple measurement provides more thoughtful services for power supply testing
Waveform display for more intuitive observation of the test process

Auto list test

Auto list test, editable multi-mode test list, automated test process

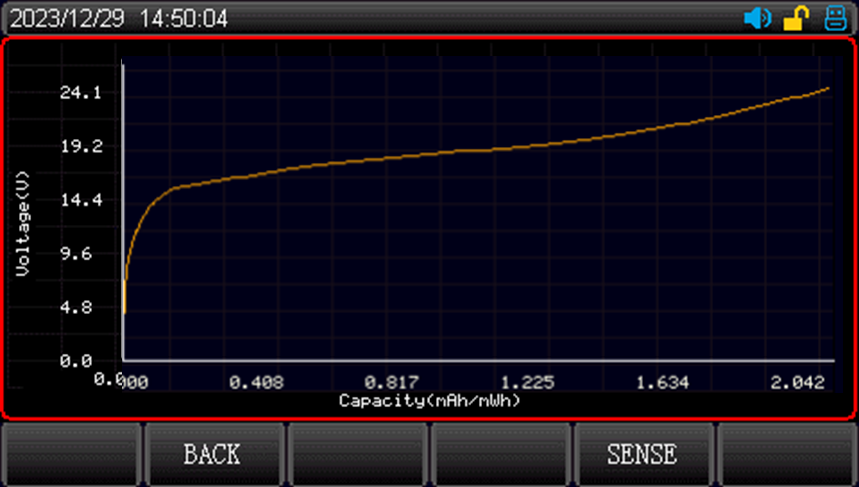

Battery mode

Battery testing not only enables battery measurement, but also records battery discharge and charging curves for you

Load effect test

Load effect test, automatically measure and give test results according to the set value

Protection test

Protection test, OCP, OVP measure the protection function and response time of the product under test

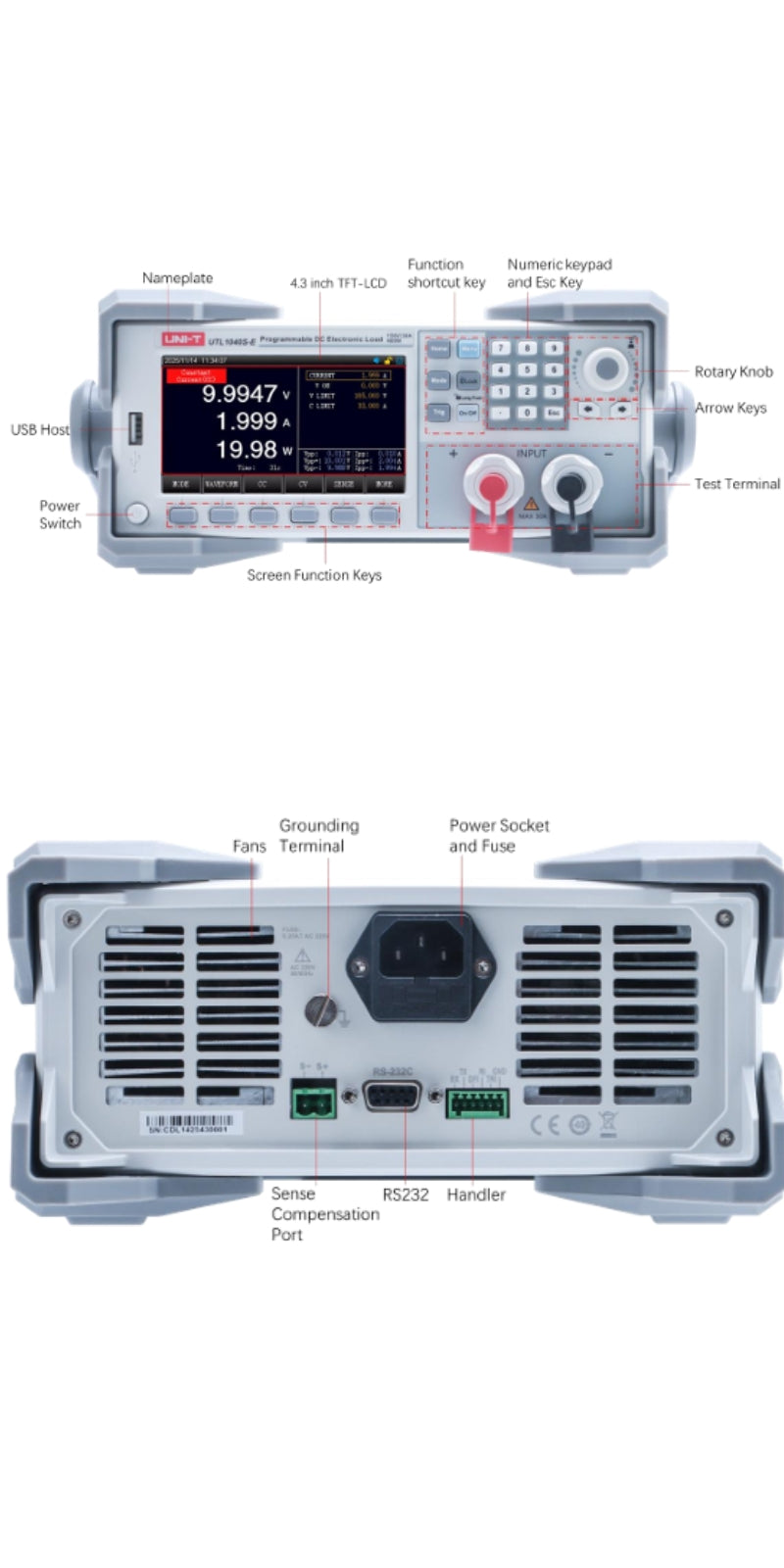

Product Details


  • Display: 4.3-inch LCD screen for clear visualization of all test results at a glance
  • Voltage / Current / Power: 150 V, 30 A, 200 W electronic load capacity for versatile testing applications
  • High-Speed Sampling: Synchronous sampling up to 500 kHz with stable resolution of 0.01 mV / 0.01 mA
  • Dynamic Mode (DYNA): Up to 50 kHz dynamic load operation with current slew rate from 0.0006 A/μs to 3 A/μs, enabling real-time observation of voltage and current peaks (Vpp, Ipp)
  • Operating Modes: Supports Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP)
  • LED Simulation: Realistic LED load simulation for testing LED drivers and power supplies
  • Protection & Test Functions: Supports Over Current Protection (OCP), Over Voltage Protection (OVP), and maximum power testing
  • Time Measurement: Built-in TIME function for duration-based testing and performance analysis
  • Programmable LIST Mode: Intelligent automated test sequences for efficient R&D and production workflows
  • Compact Design: ½ 2U form factor for space-saving rack integration and lab setups

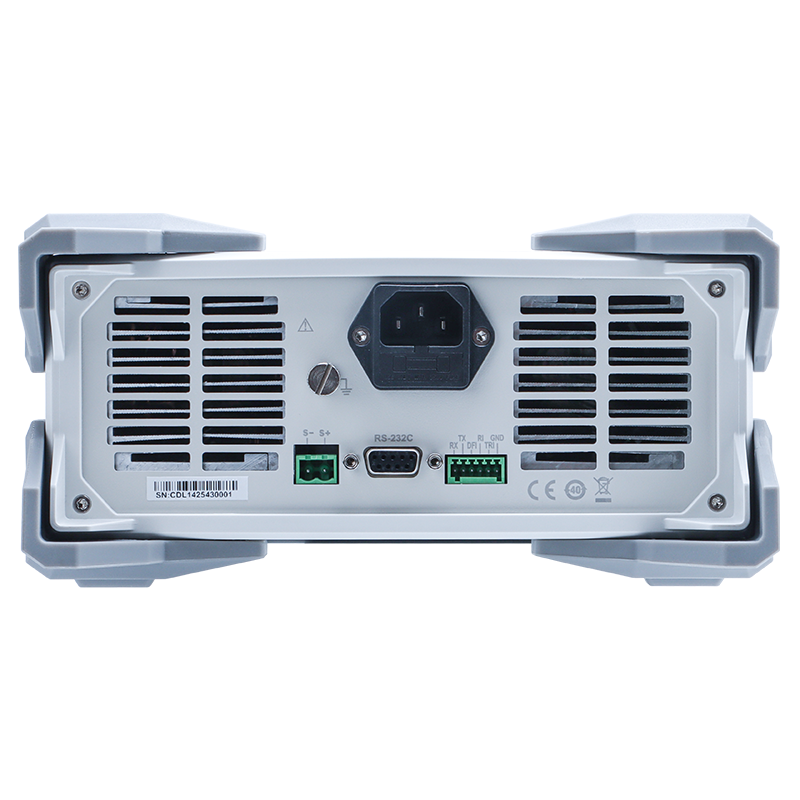

  • Connectivity: RS232 interface for remote control and integration into automated test systems

  • Power Cord x 1 Pcs
  • R232 Communication Wire x 1 Pcs
  • Spare Fuse x 2 Pcs

  • Dimension (W×H×D): 215mm × 88mm × 372mm
  • weight: <5.5Kg
