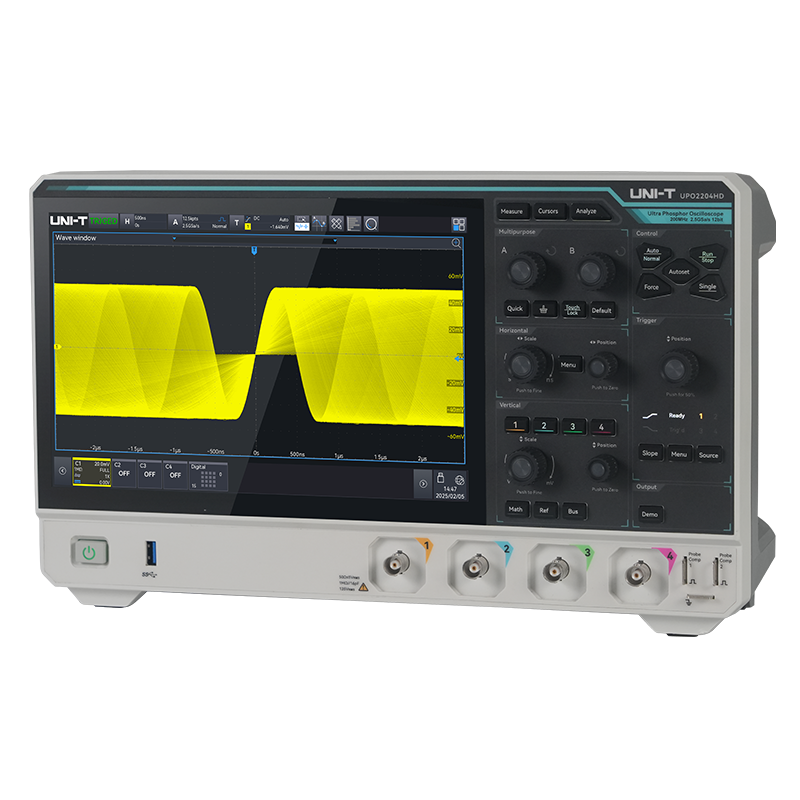

UNI-T UPO2074HD high-resolution oscilloscope

Buttons

UPO2204HD (200MHz, 4CH) UPO2202HD (200MHz, 2CH) UPO2104HD (100MHz, 4CH) UPO2102HD (100MHz, 2CH) UPO2074HD (70MHz, 4CH) UPO2072HD (70MHz, 2CH)

Bandwidth: 70 MHz
Analog Channels: 4
Sampling Rate: 2.5 GSa/s
Memory Depth: 100 Mpts
Waveform Capture Rate: 1.000,000 wfms/s

Auf Lager: 5

€899,00 EUR

Shipping wird an der Kasse berechnet.

Scrollen Sie zum Abschnitt

Characteristics

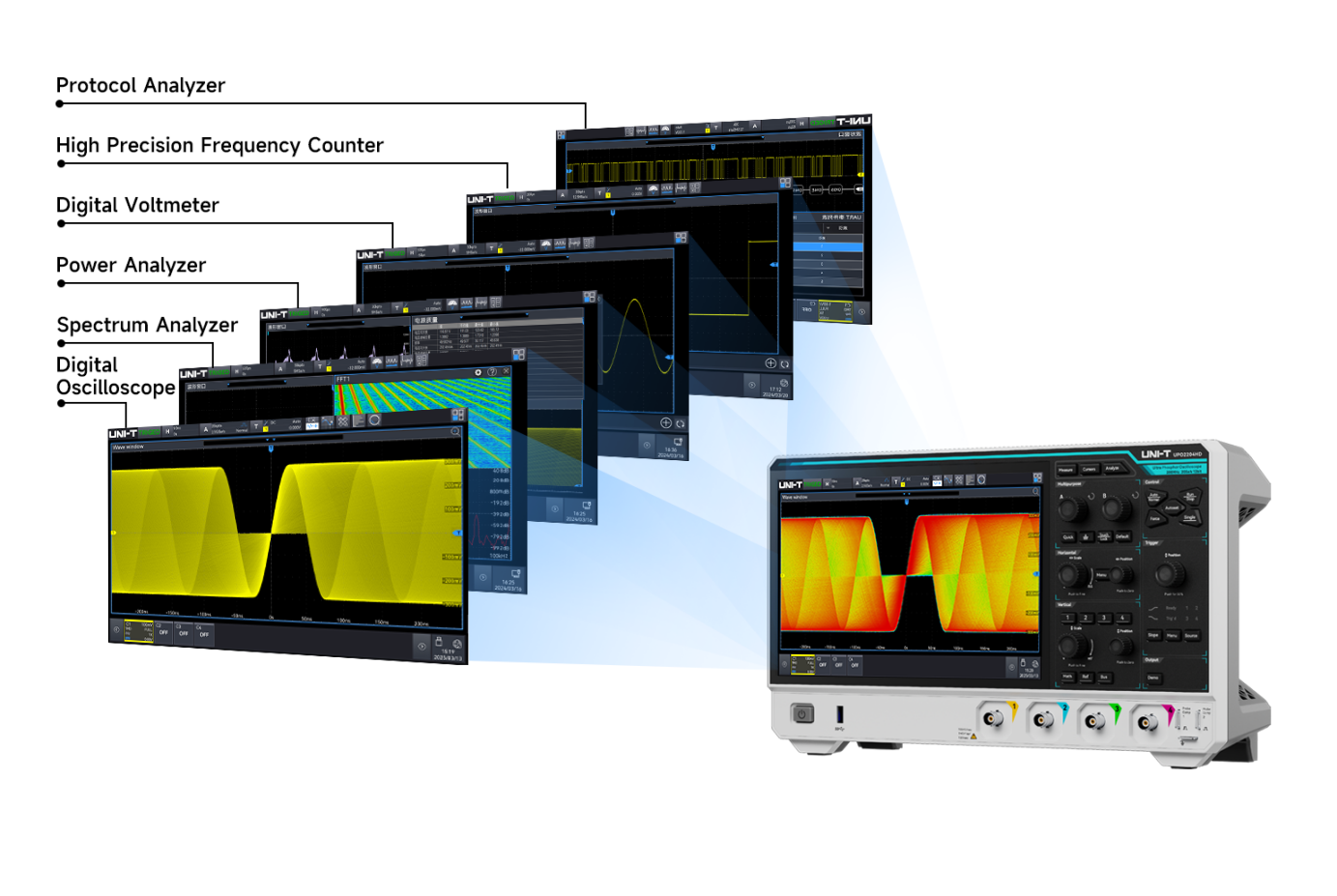

Versatile Testing Equipment

-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

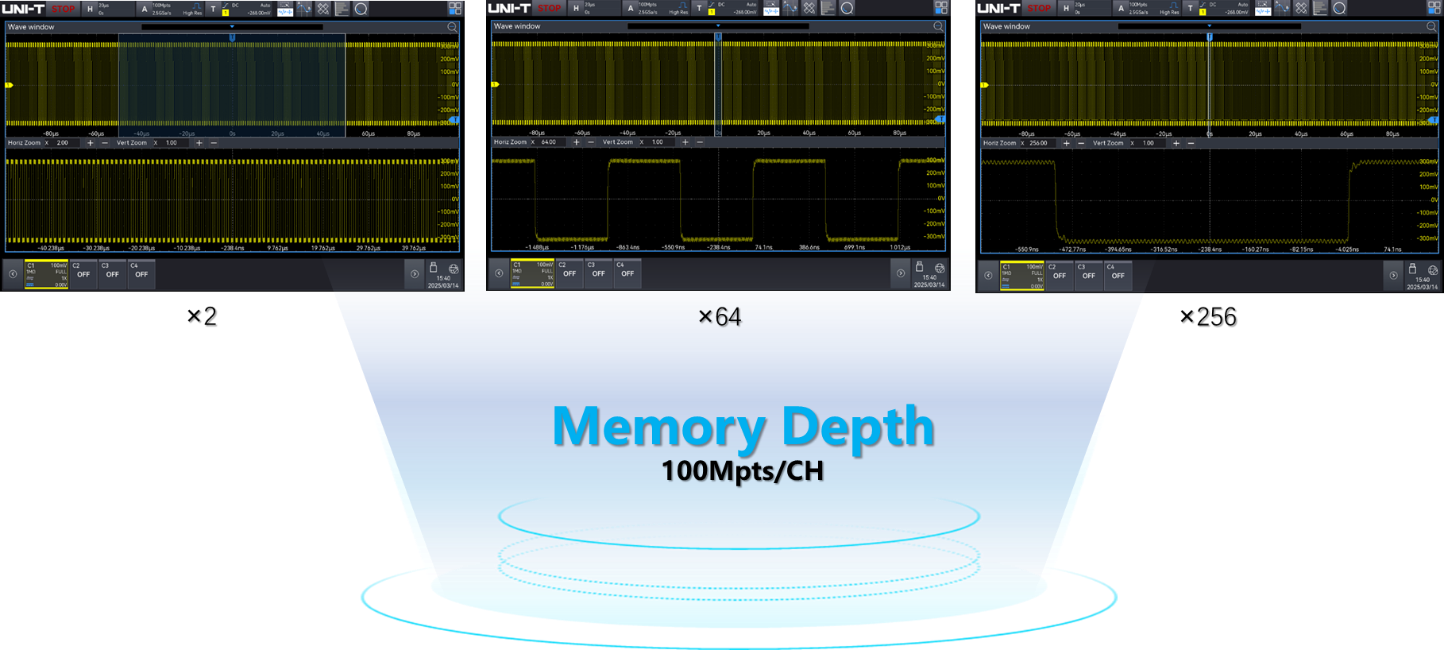

2D Infinite Zoom

Clear Horizontal and Vertical resolution

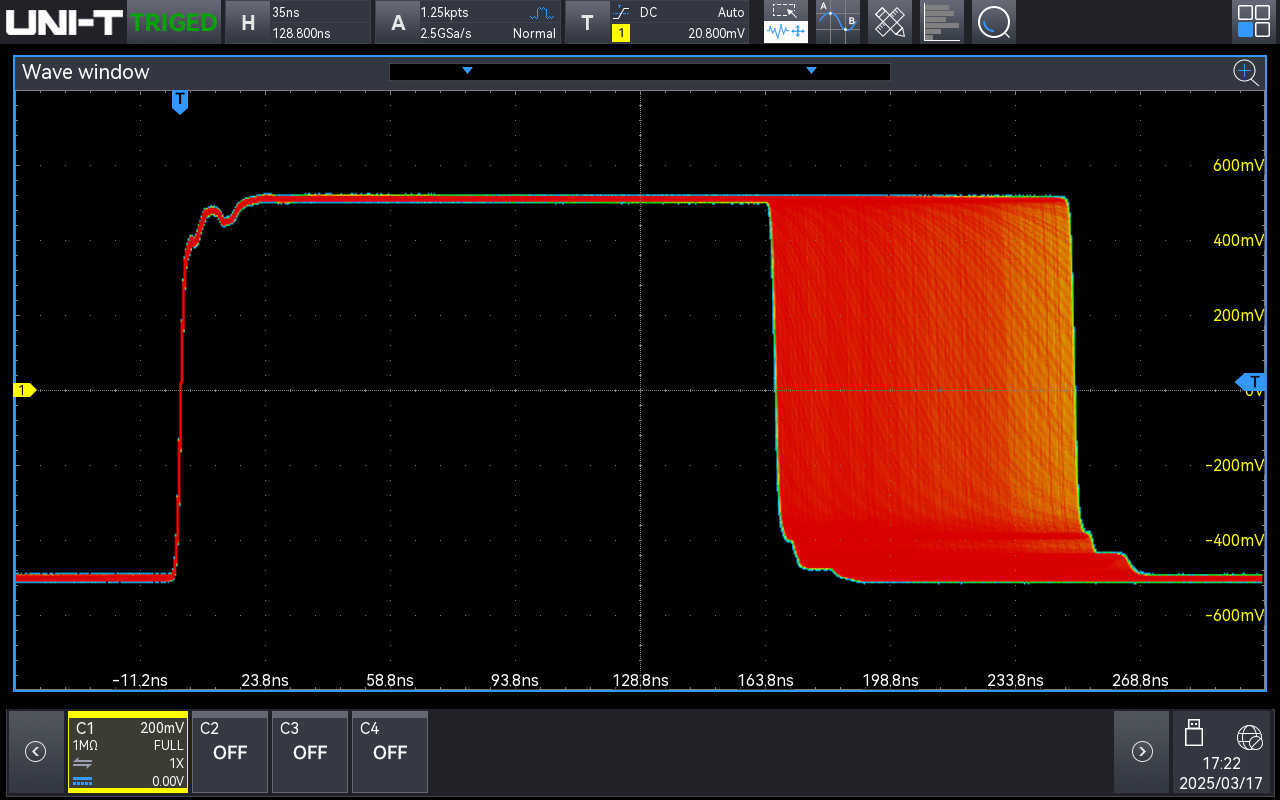

Ultra Phosphor 3.0

Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 250,000 wfms/s, and up to 1,000,000 wfms/s in the sequence mode.

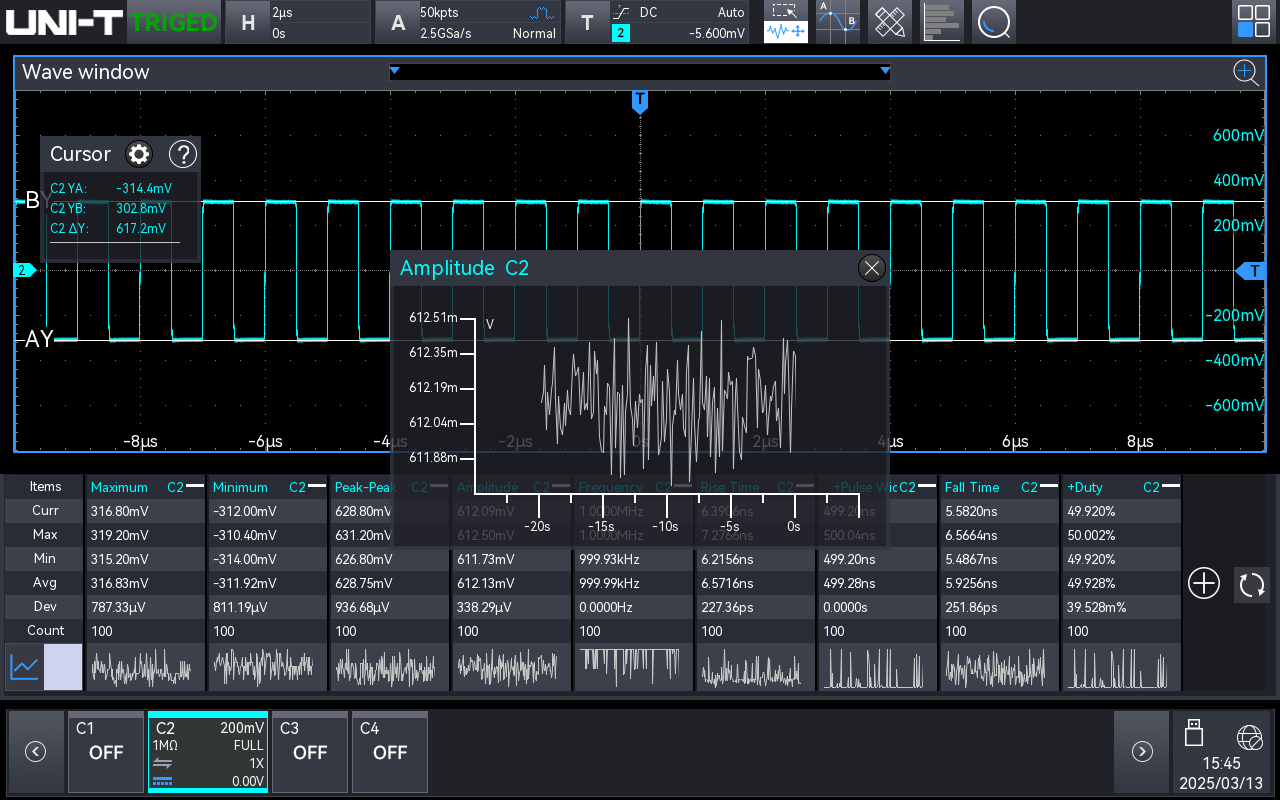

56 types: Measurement, Statistics, Trend Graphs

56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

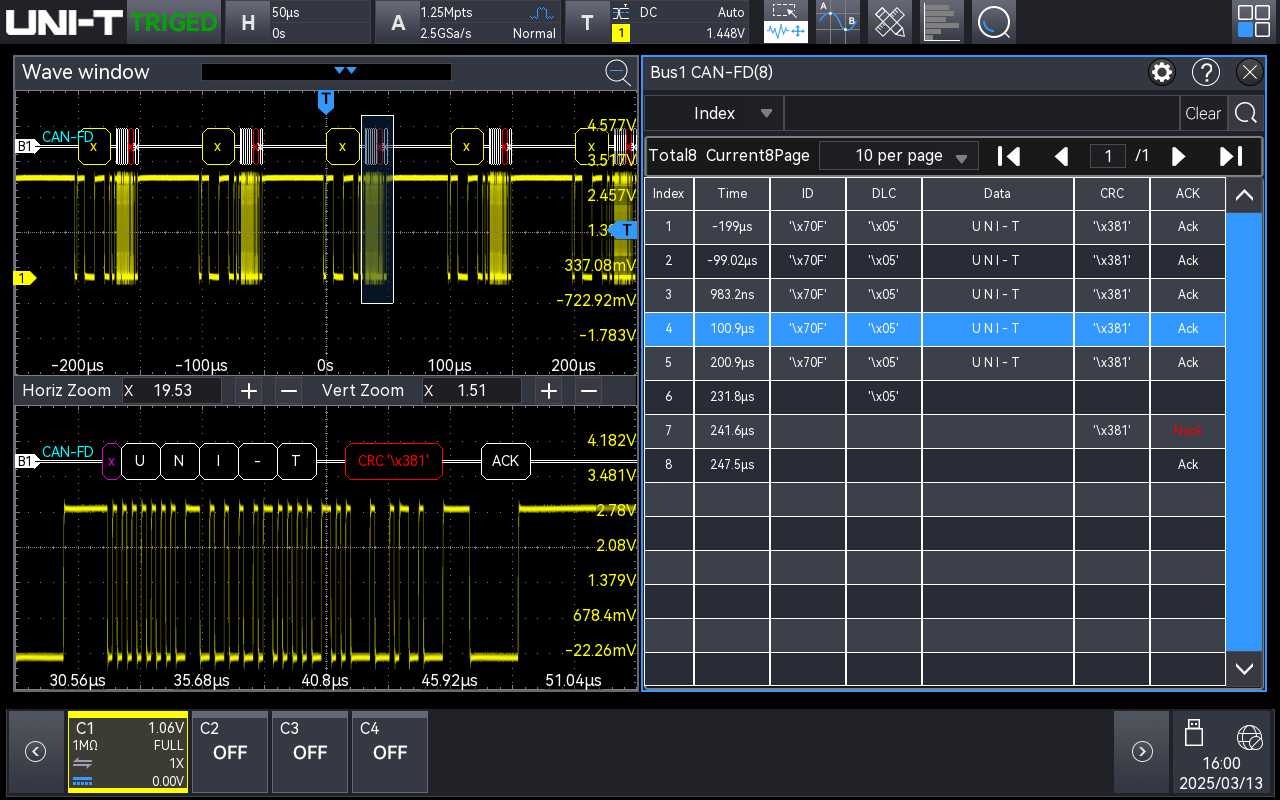

Protocol Decoding And Triggering

Supports 9 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT
-Audio

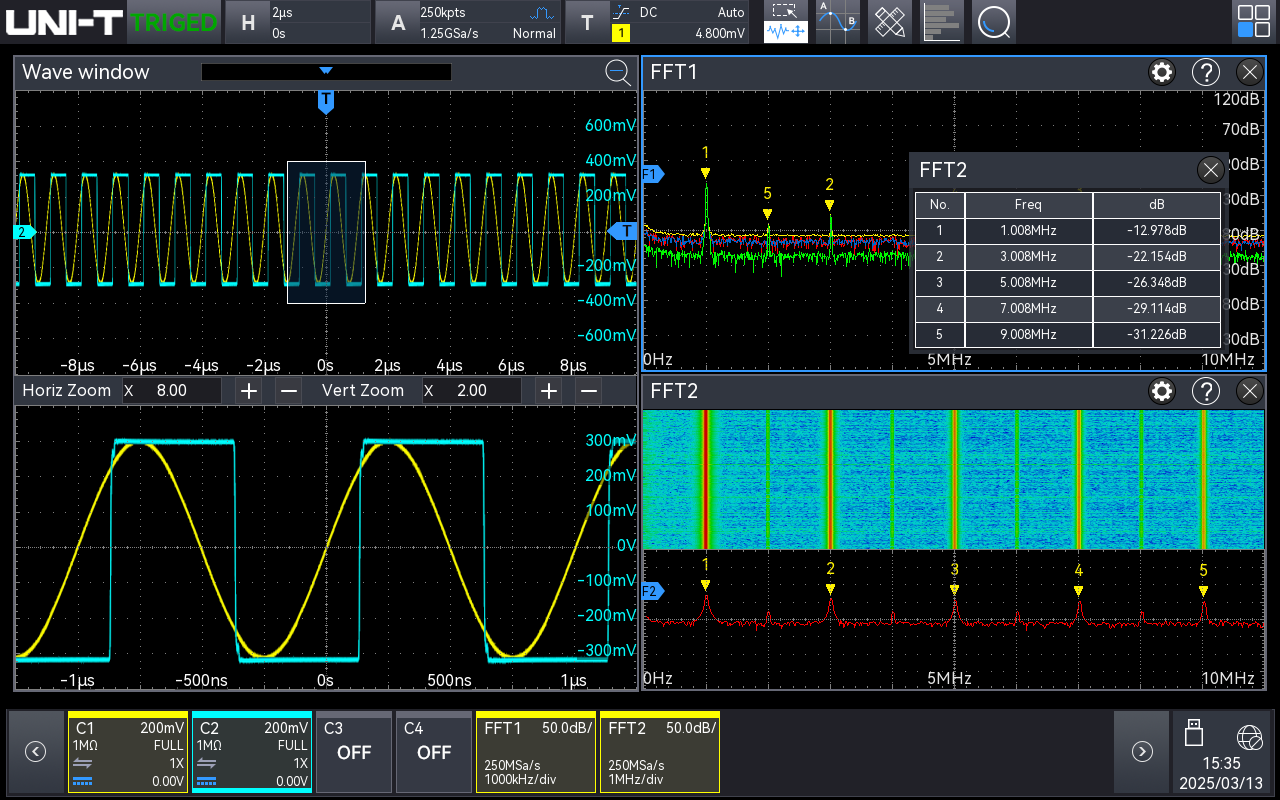

Spectrum Analyzer

-Standard enhanced FFT with up to 4 Mpts for 4-channel signal analysis
-Frequency range: 0 to 1.25 GHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list

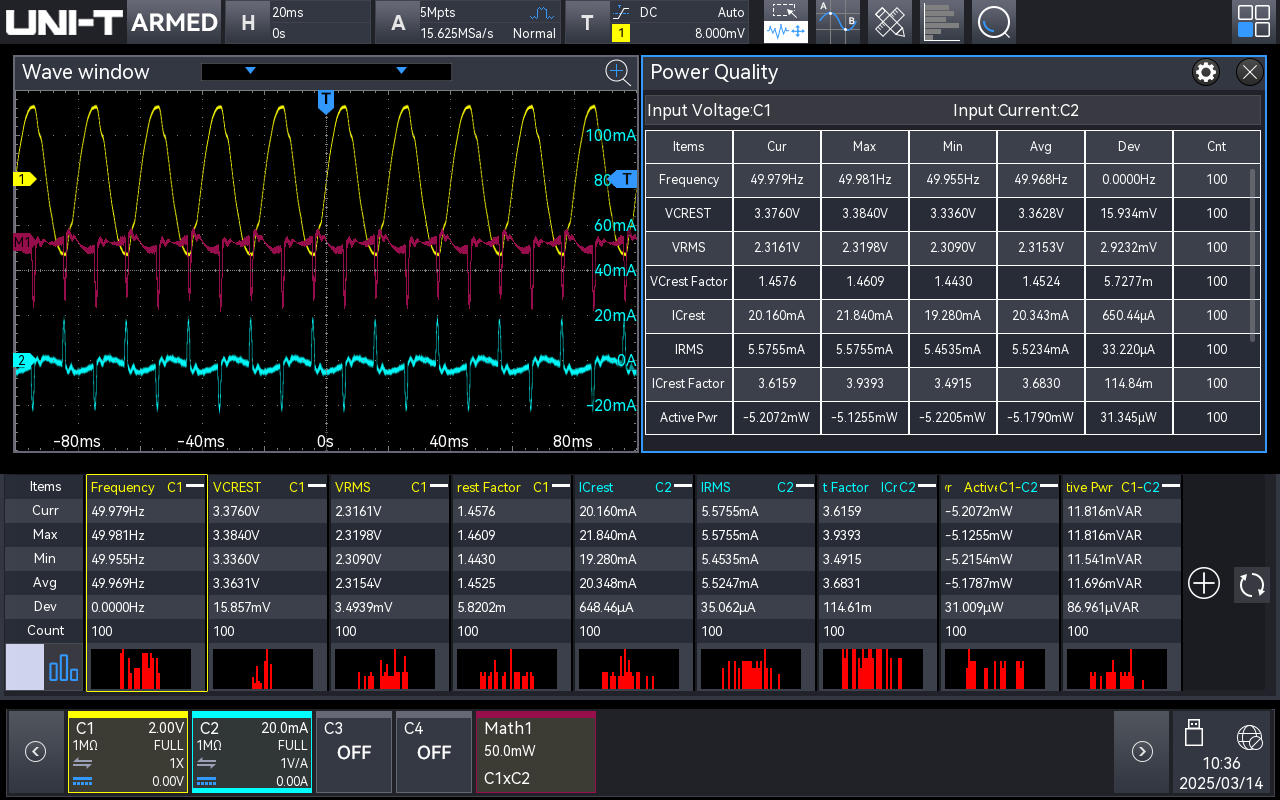

Power Analysis

Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Rds (on)
-Modulation Analysis
Output Analysis
-Ripple Analysis
-Power Efficiency
-Transient response
-ON/OFF time

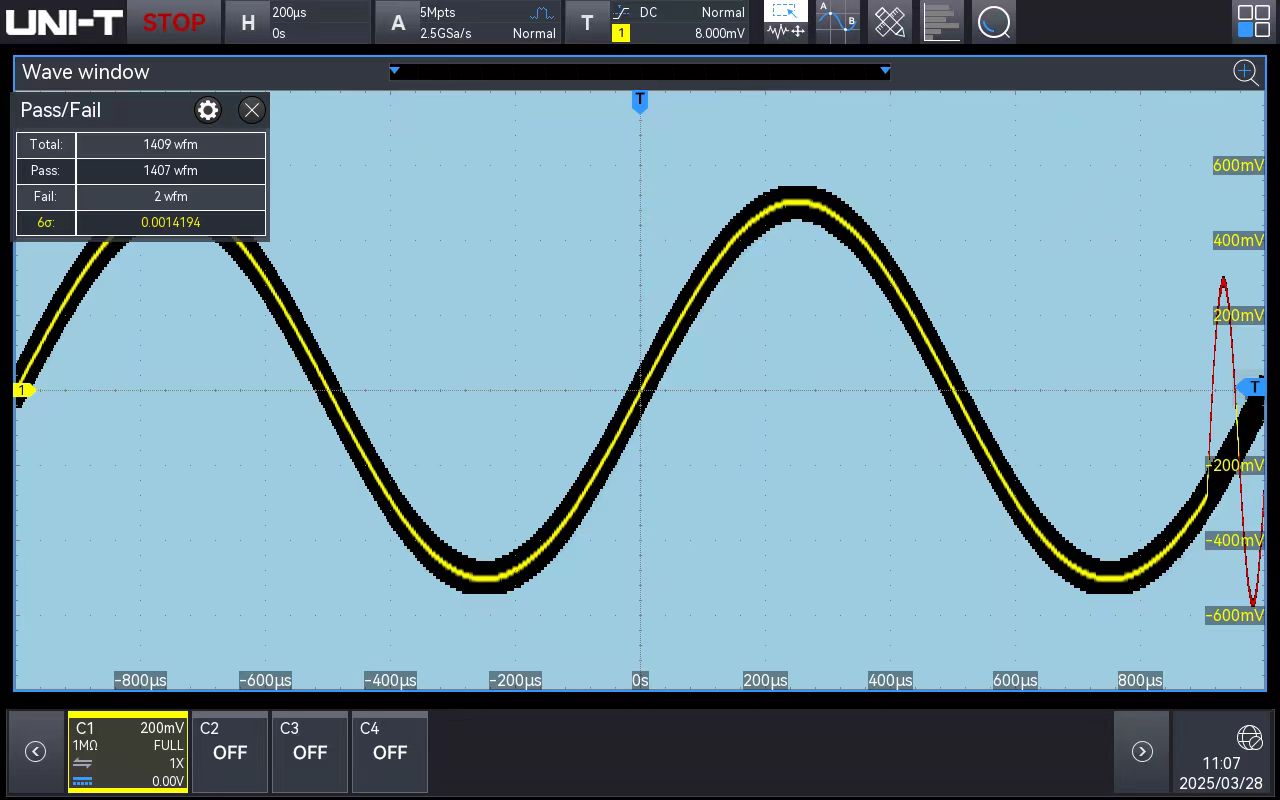

Hardware-accelerated mask testing: 6σ standard < 1s

The 6σ (Six Sigma) standard for electronic signals is a process with a defect rate of no more than 3.4 defects per million opportunities (DPMO). This means there are only 3.4 anomalies per 1,000,000 samples. With its ultra-high hardware capture rate, the hardware-accelerated template testing maintains the full capture rate of Ultra Phosphor 3.0, completing waveform tests that meet specific standards within 1 second (instead of several hours).

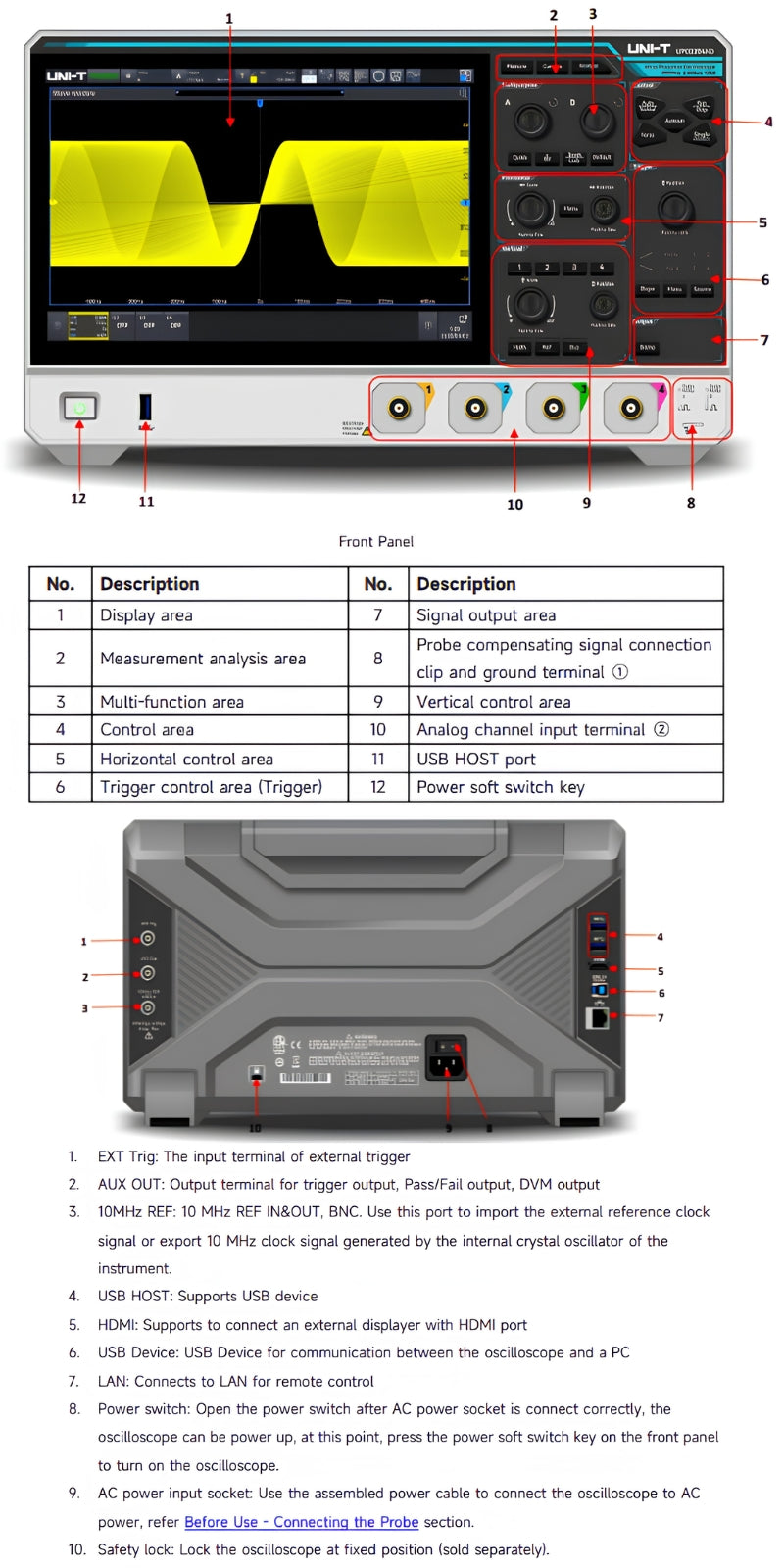

Product Details

Bandwidth: 70 MHz analog channel bandwidth, suitable for entry-level high-resolution signal analysis
Channels: 4 analog channels
Real-time Sample Rate: Up to 2.5 GSa/s for accurate waveform capture
Memory Depth: Up to 100 Mpts per channel for long waveform acquisition and deep analysis
Waveform Capture Rate: Up to 250,000 wfms/s (1,000,000 wfms/s in sequence mode)
Vertical Resolution: 12-bit ADC with Enhanced Resolution (ERES) up to 16-bit (4-bit improvement)
Display Technology: Ultra Phosphor 3.0 with 256-level grayscale for smooth and vivid waveform visualization
Integrated 6-in-1 Instrument Functions:
- High-Resolution Oscilloscope
- Spectrum Analyzer
- Digital Voltmeter (DVM)
- Frequency Meter
- Protocol Analyzer
- Power Analyzer
Protocol Triggering & Decoding: RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
Parameter Measurements: 56 types with support for histogram and trend chart display
Waveform Recording: Uninterrupted real-time hardware recording of up to 125,000 frames with USB export functionality
Enhanced FFT: Up to 4 Mpts with frequency setting, waterfall view, detection settings, and marker tracking
Zone Trigger: Enables visual selection of waveform areas to isolate sporadic or complex signals
Trigger Types: Edge, pulse width, video, ramp, runt pulse, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, and code pattern
Multi-Window Display: Allows simultaneous viewing of waveform, FFT, protocol decode, and measurements
Frequency Counter: Multi-channel 7-digit hardware frequency meter with adjustable refresh rate and digit precision
DVM RMS Measurements: DC, AC RMS, and DC+AC RMS for multichannel inputs
Touchscreen Display: 10.1-inch 1280×800 HD capacitive screen with gesture support (click, slide, zoom, drag, edit)
Connectivity Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), HDMI
SCPI Support: Fully compatible with SCPI commands for automated testing and integration
Built-in WebServer: Browser-based access and control from PC or mobile for cross-platform usability
Online Updates: Supports online firmware updates for continuous improvements and feature upgrades
