Name: UNI-T MSO1154HD Oscilloscope 150MHz 4CH+16D | Forestown AXMEAS
Brand: AXMEAS Innovative Test & Measurement Solutions
Price: 619,00 EUR
Availability: InStock

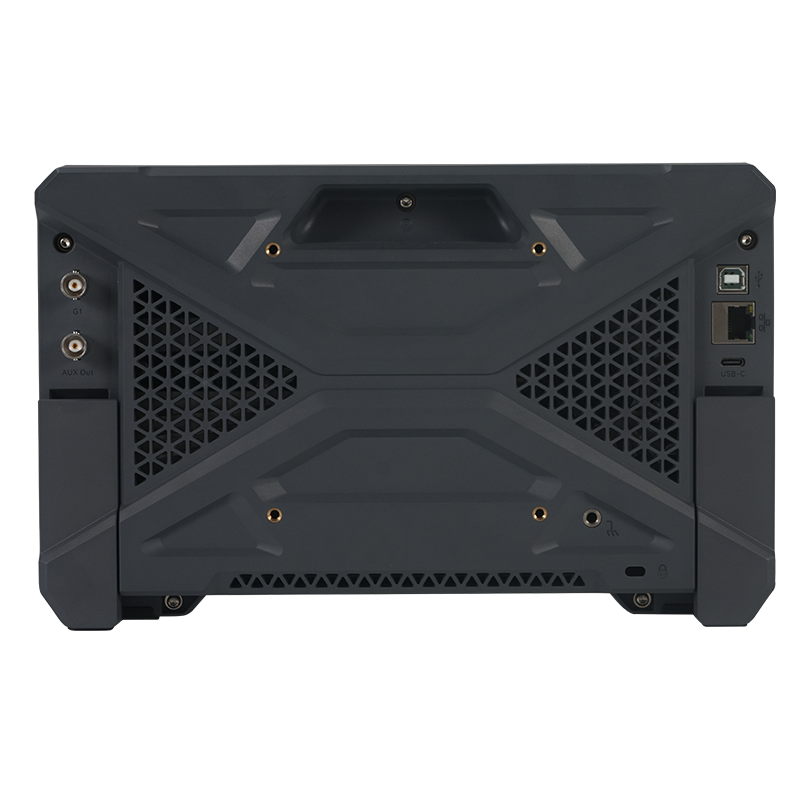

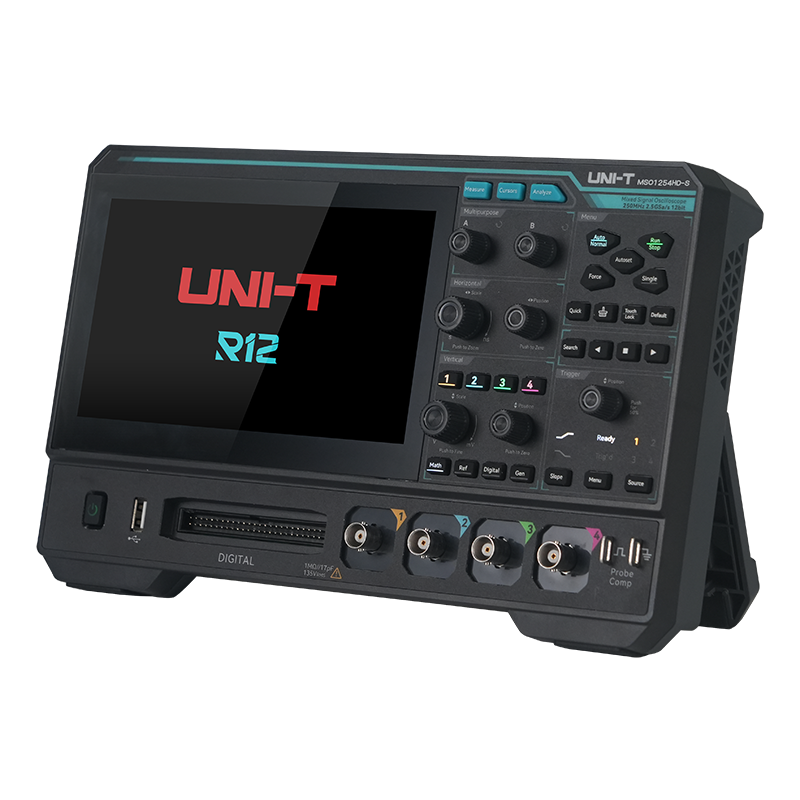

UNI-T MSO1154HD high-resolution oscilloscope

Buttons

MSO1254HD-S (250MHz) MSO1254HD (250MHz) MSO1154HD-S (150MHz) MSO1154HD (150MHz)

Bandwidth: 150 MHz
Analog Channels: 4
Sampling Rate: 2.5 GSa/s
Memory Depth: 100 Mpts
Waveform Capture Rate: 1,000,000 wfms/s
Digital Channels: 16
Function Generator: -

Auf Lager: 5

€619,00 EUR

Shipping wird an der Kasse berechnet.

Scrollen Sie zum Abschnitt

Characteristics

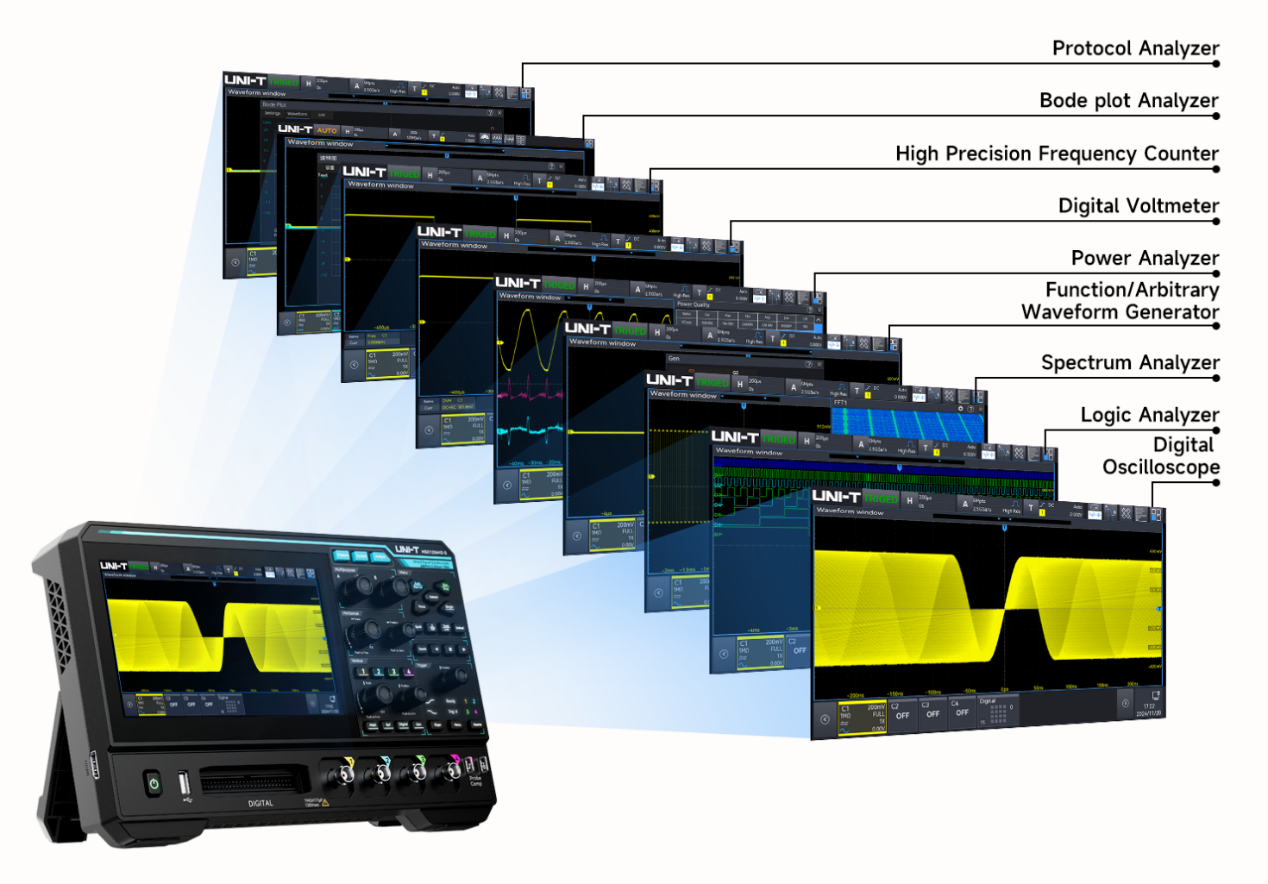

9-in one Integrated Oscilloscope

-Oscilloscopes
-Logic Analyzer
-Function/Arbitrary Waveform Generator
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-Bode plot Analyzer
-High Precision Frequency Meter
-Digital Voltmeter

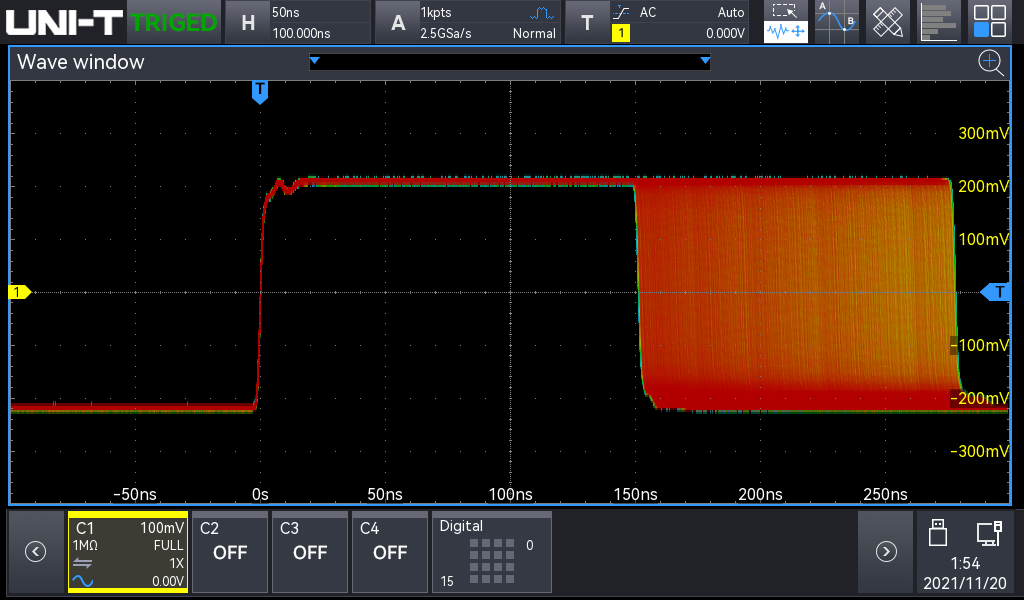

Ultra Phosphor 3.0

Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 200,000 wfms/s, and up to 1,000,000 wfms/s in the sequence mode.

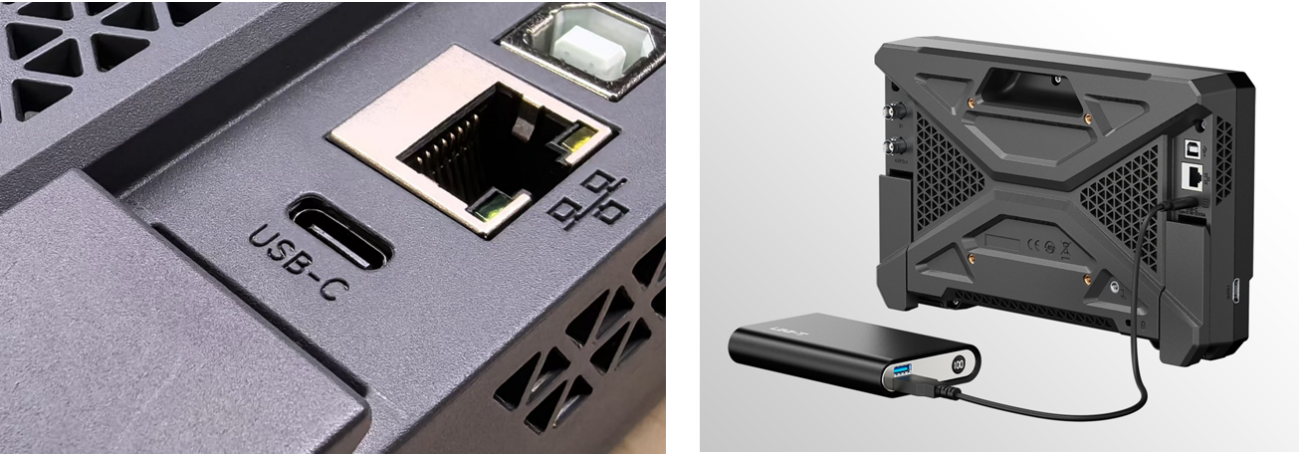

Type-C for Power Supply

MSO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger

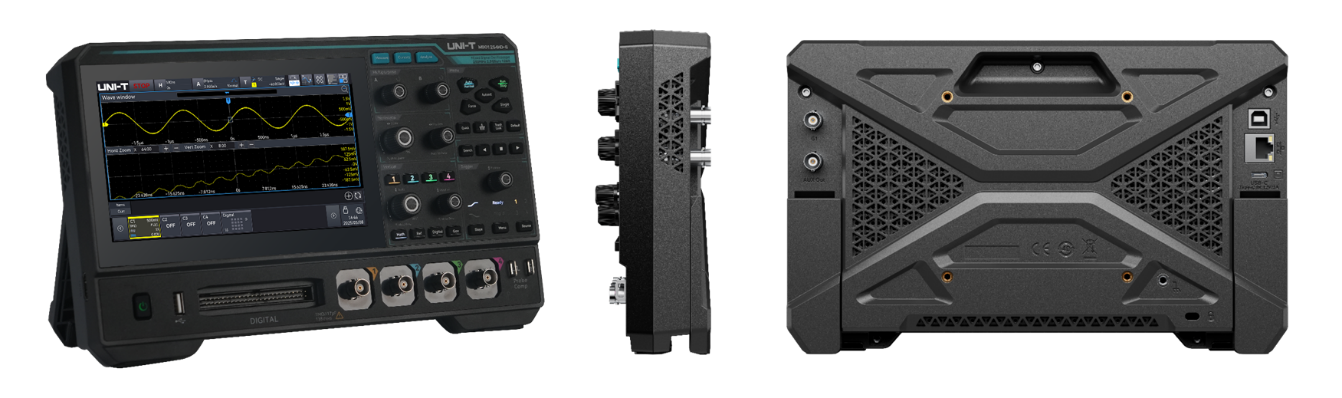

Brand New Appearance Design

Double-sided slim design for a modern and compact factor
Dimensions：28.2cm×17.5cm×4.9cm

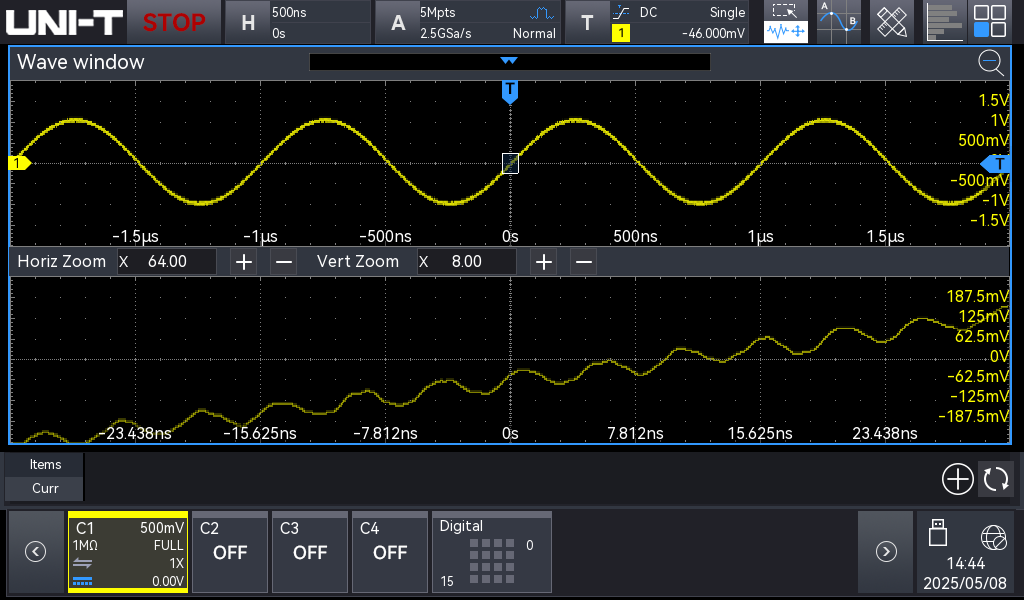

Enhanced resolution of 16-bit

Higher precision, lower noise floor. In 16-bit high-resolution mode, by combining 12-bit ADC with 4-bit ERES (enhanced resolution), the measurement accuracy is significantly improved, finely displaying the intricate details of waveforms. This effectively suppresses out-of-band noise and reduces the oscilloscope's inherent noise interference with the real signal, thereby ensuring a more precise measurement experience while increasing the sampling bits.

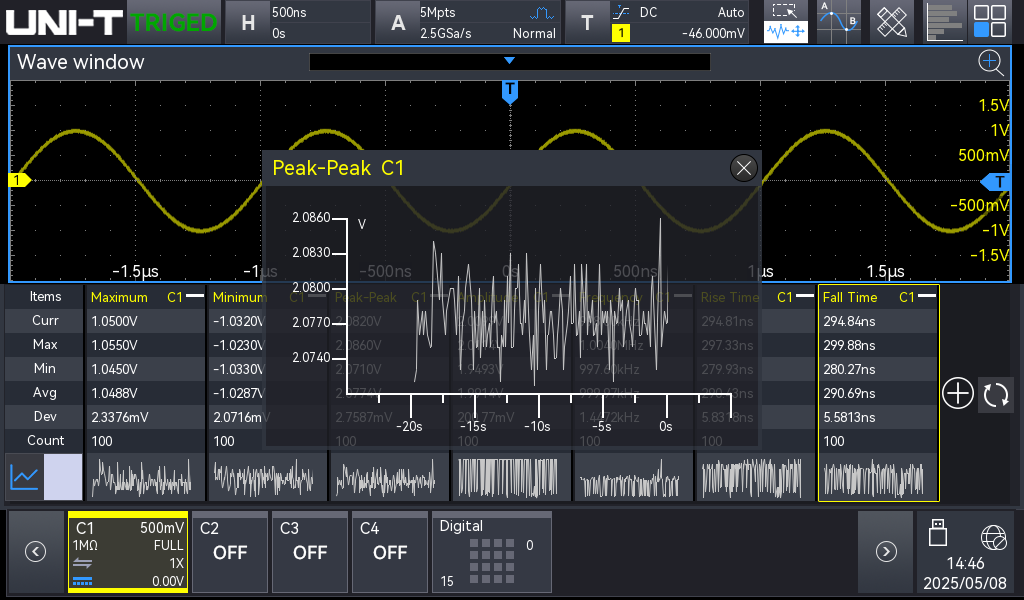

56 Types: Measurement, Statistics, Trend Graphs

56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

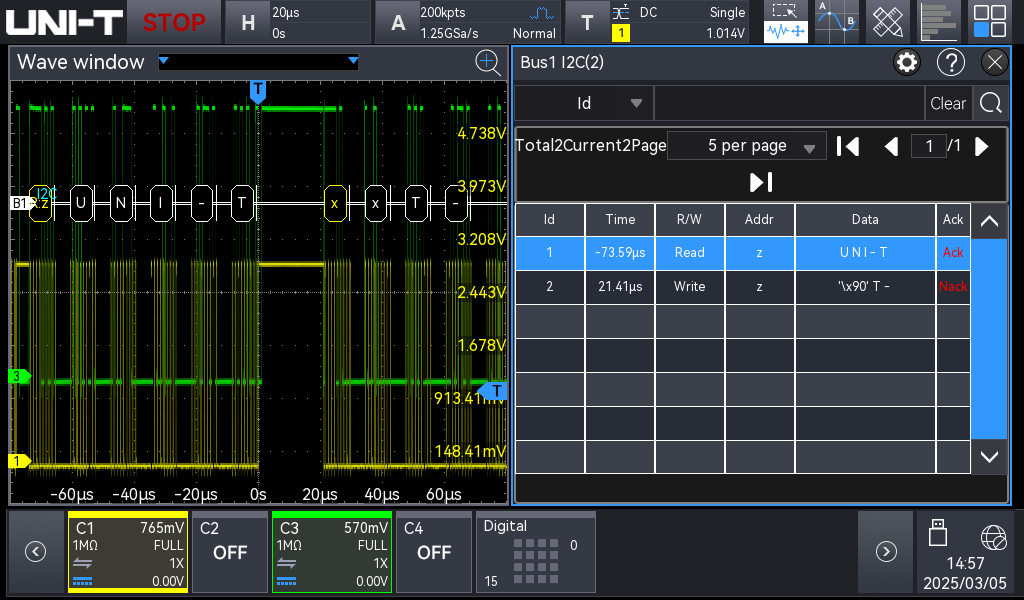

Protocol decoding and triggering

Supports 7 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, CAN-FD, LIN
-Audio: Audio

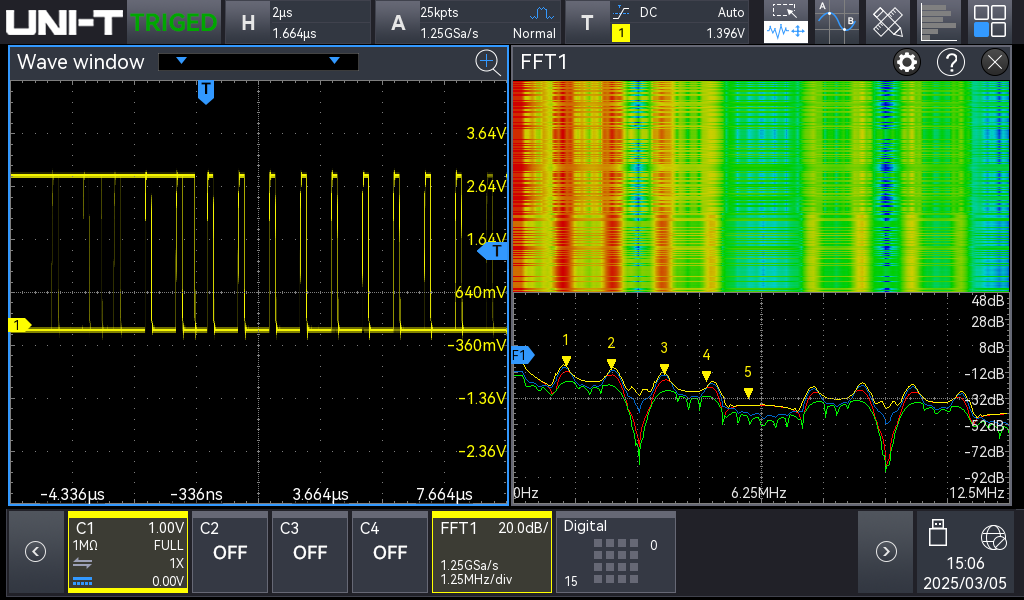

Spectrum Analyzer

-Standard enhanced FFT with up to 1 Mpts
for 4-channel signal analysis
-Frequency range: 0 to 1.25 GHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list

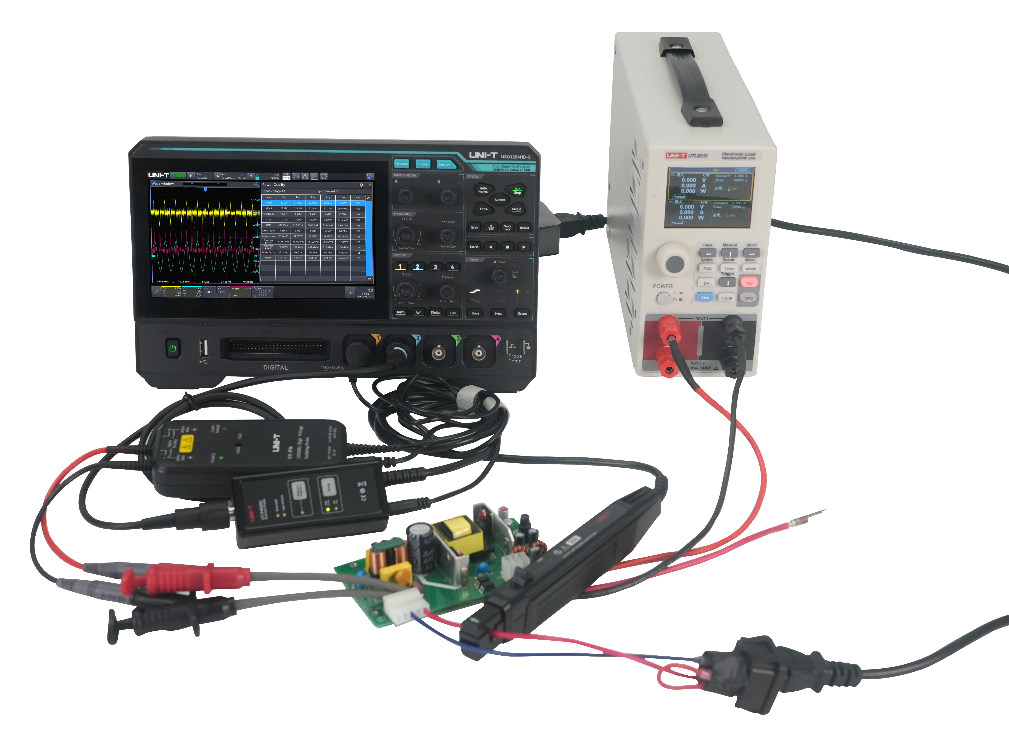

Power Analysis

Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current

Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Steady-State On-Resistance

Output Analysis
-Ripple Analysis
-Modulation Analysis
-Power Efficiency
-Transient response
-ON/OFF time

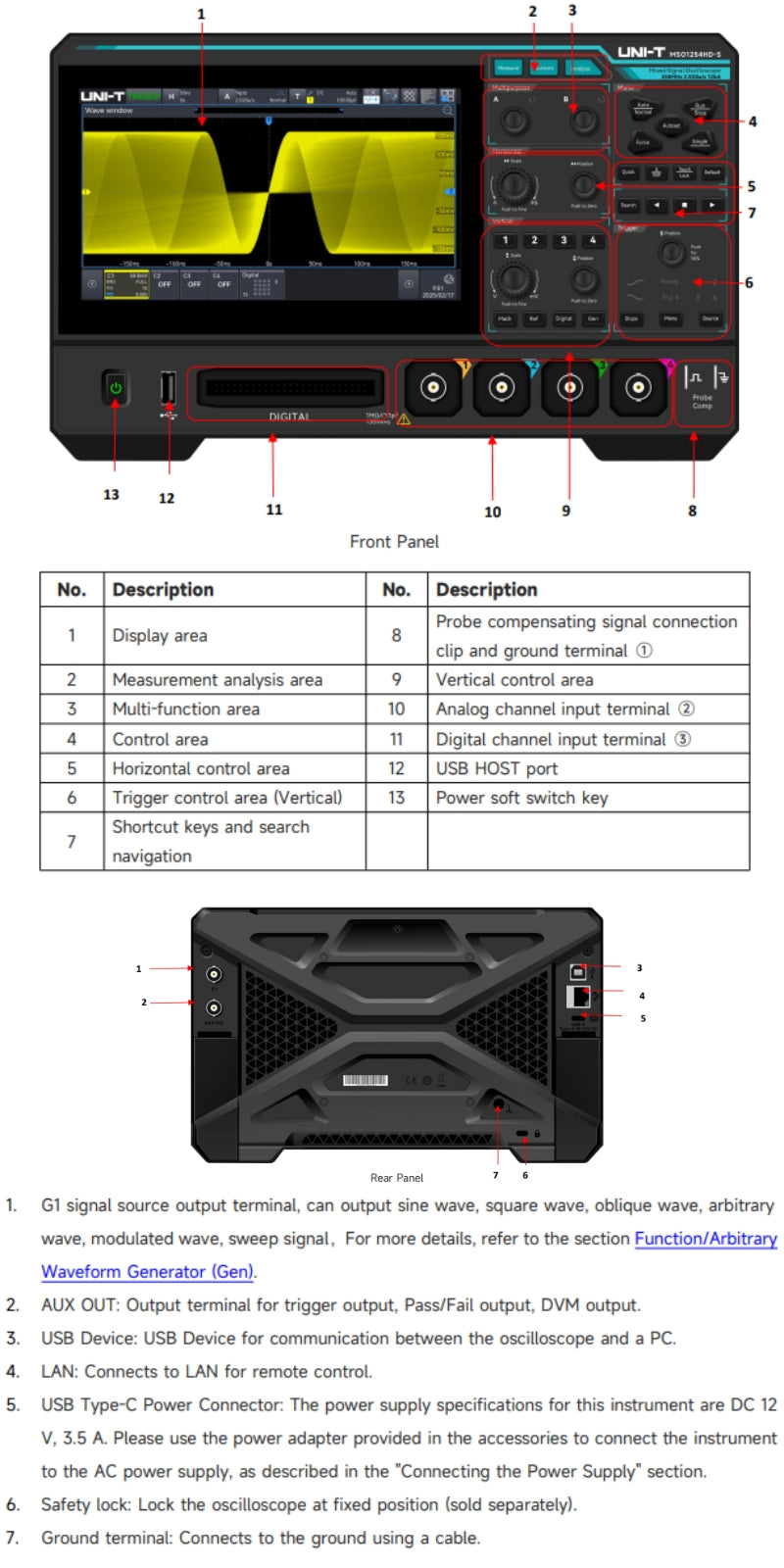

Product Details

Analog Bandwidth: 150 MHz bandwidth for embedded design, power electronics, and mixed-signal debugging
Real-Time Sampling Rate: Up to 2.5 GSa/s on analog channels; digital channels support up to 1.25 GSa/s
Vertical Resolution: True 12-bit ADC with up to 4096 quantization levels for ultra-clear, low-noise waveform visibility
Channels: 4 analog channels + 16 digital channels for complete mixed-signal analysis
Memory Depth: Up to 100 Mpts per channel for long-duration waveform capture
Waveform Capture Rate: Up to 200,000 wfms/s (sequence mode: 1,000,000 wfms/s) for detecting rare and intermittent signal events
9-in-1 Integrated Instrument:
- Digital Oscilloscope
- Logic Analyzer
- Function/Arbitrary Waveform Generator
- Spectrum Analyzer
- Digital Voltmeter (DVM)
- Frequency Meter
- Protocol Analyzer
- Bode Plot Analyzer
- Power Analyzer
Parameter Measurement Enhancements: Includes Bar Chart mode and line-graph visualization for dynamic monitoring
Waveform Recording: Real-time hardware recording of up to 100,000 frames with USB export capability
Enhanced FFT: Up to 1M-point FFT with waterfall view, marker detection, spectrum settings, and analysis tools
ERES Support: Enhanced Resolution up to +4 bits for higher fidelity measurement
Measurement Parameters: 56 automatic measurements with graphical display modes
Multi-Window Display: View waveform, FFT, logic signals, protocol decoding, and measurements simultaneously
Frequency Counter: Multi-channel 7-digit hardware frequency meter with adjustable refresh rate and resolution
DVM Functions: Multi-channel DC, AC RMS, and DC+AC RMS signal measurement
Trigger Types: Edge, pulse width, video, ramp, runt, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, and code pattern
Protocol Triggering & Decoding: RS232/UART, I²C, SPI, CAN, CAN-FD, LIN, and Audio protocols
Zone Trigger: Graphical triggering for capturing rare, complex, or sporadic signal anomalies
Ultra Phosphor 3.0: Super-fluorescent rendering with 256-level grayscale intensity for vivid waveform visualization
Display: 7-inch 1280×800 HD capacitive multi-touch screen supporting click, slide, pinch-to-zoom, drag, and edit gestures
Interfaces: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
SCPI Support: Fully programmable instrument control for automated test environments
Built-In WebServer: Remote control and waveform viewing from PC or mobile browser, cross-platform compatible
Online Update: Supports firmware upgrade for continuous performance improvements
